BROKK 70

Great power in minimal spaces. A demolition robot that eliminates all need for manual demolition work.

WANT OUR CATALOGUE? ORDER

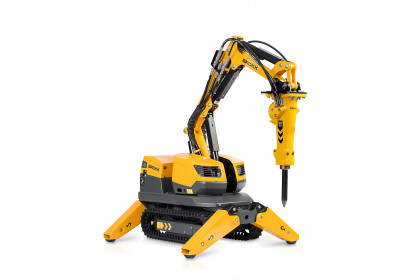

The Brokk 70 is the perfect solution for safe and efficient demolition in confined spaces. Compared to its predecessor, the Brokk 60, the Brokk 70 has a stunning 100% more demolition capacity. Its combination of power, small size, and light weight allow for work in places where mechanized demolition has previously been impossible. Equipped with SmartPower™ and a smooth hydraulic system, the Brokk 70 features enormous power in a miniature size. With the Brokk 70, there is no need to continue using harmful hand tools.

  • Weighs less than 560 kg
  • 9.8 kW Brokk SmartPower™ electrical system
  • Powered with only 16 A electricity fuse
  • Extremely compact - gets through the narrowest doorways

Features

三臂结构

三臂结构

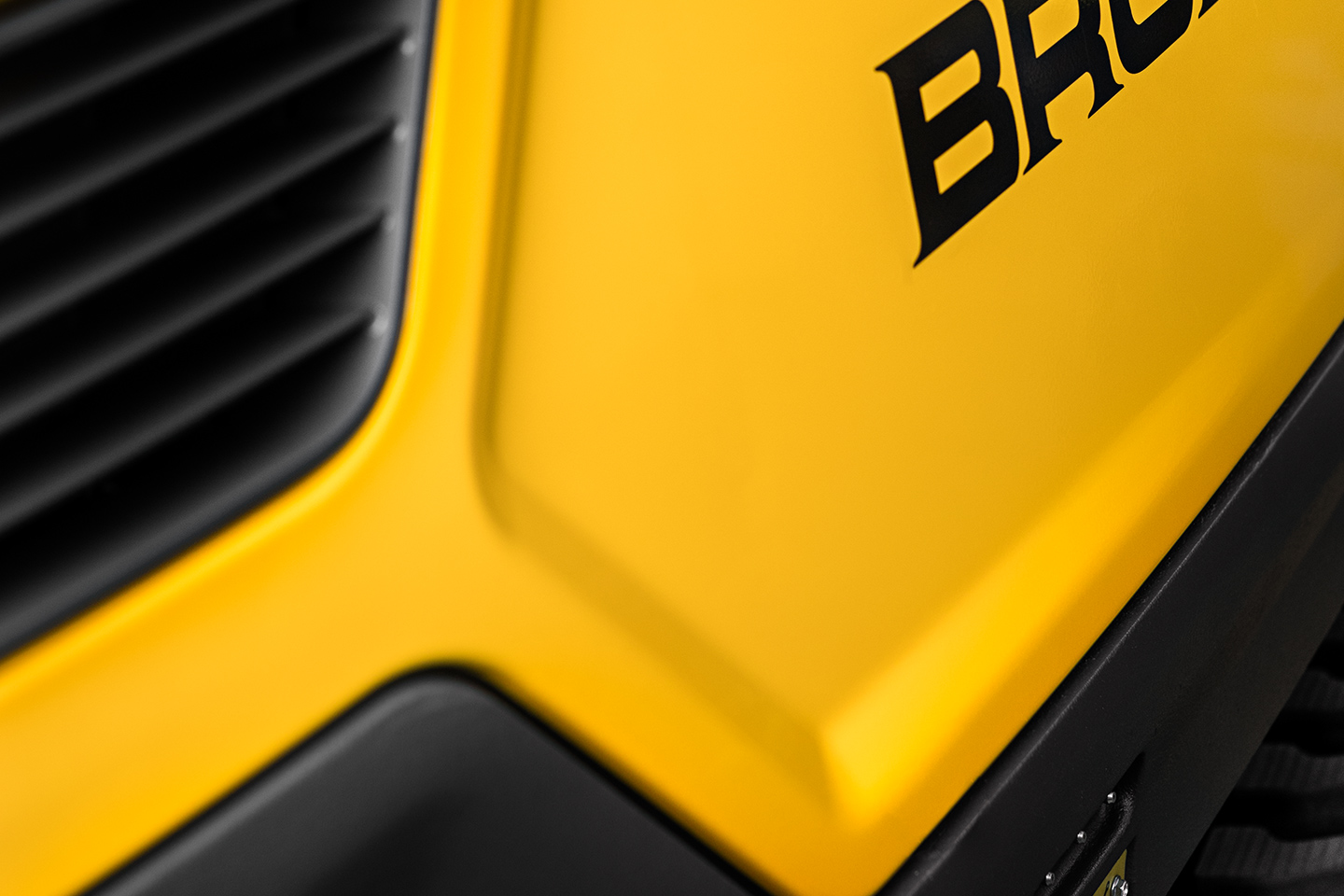

铸造底盘

铸造底盘

SmartPower™

SmartPower™

日常保养-打开机盖

日常保养-打开机盖

Hydraulic breaker in illustrations.
Load and stability diagram available on request.
BHB 105

Performance

Slewing speed
6,5 sec/245°
Transport speed, max.
2.7 km/h; 1.7 mph
Climbing inclination, max.
30°

Hydraulic system

Hydraulic system capacity
27 l; 7.1 US gal
Pump type
Variable load-sensing
System pressure
17 MPa; 2466 psi
Pump flow max. 50Hz and 60Hz
27 l/min; 7 US gal/min

Power system

Power technology
SmartPower™
Electric motor type
ABB
Power*
9.8 kW
Recommended fuse size*
16 A
Starting device
Direct start

Control system

Control type
SmartRemote™, portable
Signal code
Digital
Transfer
Professional radio/Cable
Range, radio
Up to 300 m

Weight

Machine weight**
560 kg; 1235 lbs
Recommended attachment weight
105 kg; 231 lbs

Noise level

Sound power level LWA***
90 dB(A)

Width min.
597 mm; 23.5 in
Height min.
880 mm; 34.6 in
Vertical reach (incl. breaker)
3200 mm; 126 in
Horizontal reach (incl. breaker)
2700 mm; 106 in

*Valid for 400 V/50 Hz and 440 V/60 Hz
**Excluding attachment and extra equipment
***Measured according to directive 2000/14/EC

油缸保护

油缸保护

适合高温环境,可提供高温及冲击保护

橡胶履带

橡胶履带

抓地力良好并适用各种地面

锤头强制冷却装置

锤头强制冷却装置

适合红热的工作场合

橡胶脚垫

橡胶脚垫

适用于高温地面

水雾喷淋

水雾喷淋

水雾喷淋可有效抑尘。

额外的液压功能

额外的液压功能

Download PDF
吊耳

吊耳

专用升降吊耳,方便连接

液压锤

相对于市场上的其他产品,Brokk液压锤的冲击频率更快,冲击功更大,同时依旧保持着较少的噪音和震动。

混凝土剪

我们的混凝土剪拥有惊人的工作效率。可以自由旋转。

铣刨头

Brokk铣刨头是隧道掘进、特殊基础工程、爆破、挖沟和土壤搅拌的理想设备。适用于噪音和振动敏感区域。

挖斗

装载挖斗的Brokk机器人将变身为世界上最灵活的挖掘机之一。

密闭式抓斗(蛤壳式抓斗)

多种规格的密闭式抓斗让Brokk变身成为一个完美的运输机。可运输,装载,分拣各种材料及碎片。

多功能抓斗

Brokk提供多种不同规格的抓斗来提高您的工作效率

多功能搬运夹

These dedicated grapples are tailor-made tool for loading, sorting and separating debris, like rock, concrete, wood and/or metal work.

切割锯

替代传统手持切割设备切割如门窗框架,电缆管道等钢铁材料,同时不会使钢铁材料扭曲变形。
