Brokk 520D

Logoname
功率高,力量大,更环保。

WANT OUR CATALOGUE? ORDER

B ro k k 5 2 0 D 柴油机驱动的机器人是B rokk400D的升级产品,提高了30%的破拆能力,底盘更新,大臂加强, 提高可靠性。它适用于电力供应不便的场所, 机动灵活, 易于转场, 能进入狭窄空间作业。

B ro k k 5 2 0 D结合了智能化Smar C o n c e p t理念,融入了智能设计,是行走最快的Brokk机器人。对比电驱动机器人,行走速度提高50%,机器人行走时间减少,提高作业效率。是地下矿山、隧道暗挖、抢险救援、建筑拆除行业的首选产品,在高炉铁沟耐材解体领域有良好的表现。

同Brokk其它机器人一样,B520D也采用遥控操作,操作人员始终处于安全的位置操纵机器。强劲的大功率柴油机满足严格的环保要求。B520D的破拆能力相当于一台25-30吨的挖掘机。

  • 安装BHB 705液压锤,整机功率提高40%
  • 符合严格的排放标准
  • 稳定可靠的智能控制系统
  • Brokk智能设计和智能控制系统
  • 可兼容Brokk400和500的配件

Features

多节油管-支腿

多节油管-支腿

Reinforced headlight protection

Reinforced headlight protection

大容量润滑油罐

大容量润滑油罐

Hydraulic breaker in illustrations.
Load and stability diagram available on request
BHB 705

Performance

Slewing speed
16 sec/360°
Transport speed, max.
3,4 km/h; 2.1 mph
Climbing inclination, max.
30°

Hydraulic system

Hydraulic system capacity
145 l; 38 US gal
Pump type
Variable load-sensing
System pressure
18,0 MPa; 2 611 psi
Increased pressure to attachment
24,0 MPa; 3 481 psi
Pump flow
130 l/min; 34 US gal/min

Diesel performance

Type 1)
Kohler Four-cylinder, water-cooled, 4-stroke engine
Engine
55 kW; 74 hp diesel EPA Tier 4, EU Stage IV
Engine oil volume
11,5 l; 3 US gal
Type 2)
Kubota Four-cylinder, water-cooled, 4-stroke engine
Engine***
55 kW; 74 hp diesel EPA Tier 3, EU Stage IIIA
Engine oil volume
13,2 l; 3.5 US gal
Fuel tank capacity
70 l; 18 US gal
Coolant volume
10 l; 2.6 gal
Freezing point
-40ºC; -40ºF

Control system

Control type
SmartRemote, portable control
Signal code
Digital
Transfer
Professional radio/Cable
Range, radio
Up to 300 m

Weight

Machine weight*
5 500 kg; 12 125 lbs
Recommended attachment weight
700 kg; 1 543 lbs

Noise level

Sound power level LWA**
101 dB(A)

Power
55 D
Width min.
1600 mm; 63 in
Height min.
1860 mm; 73.2 in
Vertical reach (incl. breaker)
7100 mm; 280 in
Horizontal reach (incl. breaker)
6700 mm; 264 in

*Excluding options and attachment
**Measured according to directive 2000/14/EC, excl. attachment
***Rated power 74 kW: 99,2 hp at 2,600 rpm (SAE J1995)

Extra Cylinder Protection

Extra Cylinder Protection

Provides impact protection for C2 and C3 and works as a heat shield when working in red hot environments.

Download PDF
Heavy duty dipper arm

Heavy duty dipper arm

With the breaker direct mounted and the cylinder underneath the dipper arm this option is perfect for heavy duty applications.

Heat resistant hoses

Heat resistant hoses

Suitable for red hot applications.

Download PDF
Forced draft cooling of machine

Forced draft cooling of machine

Suitable for high ambient temperatures. Flushes cool air into electrical cabinet and cooler.

Download PDF
Forced draft cooling for breaker

Forced draft cooling for breaker

Suitable for red hot applications and flushes air through the breaker.

Download PDF
Steel pads

Steel pads

Suitable when machine is placed on very hot ground.

Download PDF
Air flushing for breaker

Air flushing for breaker

Air flushing prevents dust from entering the breaker, especially useful for upwards breaking and a must for underwater use.

Waterspray

Waterspray

Sprays water when breaker is activated and binds dust efficiently.

Download PDF
Extra hydraulic function

Extra hydraulic function

Required for certain tools only.

Download PDF
Counterweight

Counterweight

Allows the use of extra heavy tools.

Download PDF

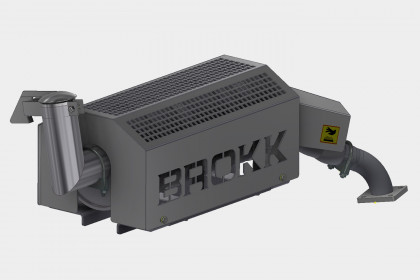

Particulate filter

Particulate filter

Reduces the emissions from the diesel engine.

Download PDF
Lifting eyes

Lifting eyes

Dedicated lifting eyes for easy connection. (Regular lifting points standard on all machines.)

Download PDF
Brokk cover

Brokk cover

Protects the Brokk machine during transport or storage.

Breakers

Brokk’s hydraulic breakers are the most versatile and effective attachments for your Brokk robot

Concrete crushers

A concrete crushers allows you to do silent demolition with less noise, dust and vibration

Metal shears

Our wide range of metal shears allows you to cut steel of many different sizes

Buckets

Turn your Brokk robot into a flexible excavator, optimal for confined spaces.

Clamshell buckets

Brokk’s wide range of clamshell buckets transforms your Brokk robot into the perfect machine for sorting material and debris.

Multi Purpose Grapples

Make your work even more efficient with a multi purpose grapple from Brokk, the ideal attachment for loading, sorting, and separating debris.

Sorting & demolition grapples

Sorting and demolition grapples are tailor-made and ideal for soft demolition and stripping structures inside of buildings.

Planers

Brokk planers remove concrete, paint, asbestos, or other layers in a controlled manner up to a certain depth

Drilling

Drill holes in rock, concrete, or compact soil in open or limited spaces

Drum cutters

Brokk drum cutters are designed for trenching, demolition, and concrete surfaces

Beam Grapple

Equipped with a beam grapple, your Brokk robot becomes an excellent and flexible machine for installing steel beams in tunnel and mining applications.

Shot crete

This attachment can turn your Brokk robot into a shotcrete machine for confined spaces.

Cut off saw

Replace hand-held equipment with a Brokk cut off saw.

Splitters

Break hard rocks with a light, powerful, and versatile Brokk splitter

Side angling device

Give your Brokk hydraulic breaker that extra angle for extremely confined spaces.
