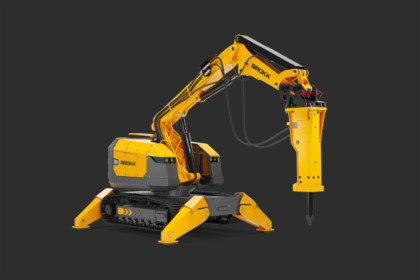

Brokk 900 Rotoboom

Logoname
Whether you require the power or precision for a clean out - Brokk 900 Rotoboom will always get the job done.

WANT OUR CATALOGUE? ORDER

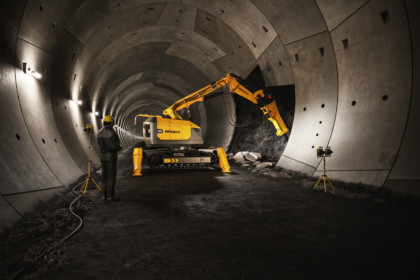

The Brokk 900 will open a whole new world of applications within heavy demolition and the tunneling industry. Heavy jobs require heavy attachments, that’s the reason why Brokk 900 will be equipped with BHB 1500 which will give you more hitting power than any other demolition robot in the world. A major upgrade from its predecessor, Brokk 800, is that the Brokk 900 is equipped with SmartPower™ for optimized and more reliable runtime for longer periods of time. And with the new robust design, Brokk 900 will be a demolition robot to count on!





Read the press release here

  • Specifically designed for tough metal processing applications

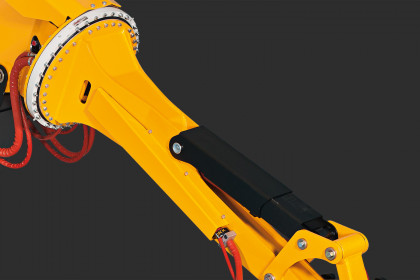

  • Rotating arm system provide optimal flexibility

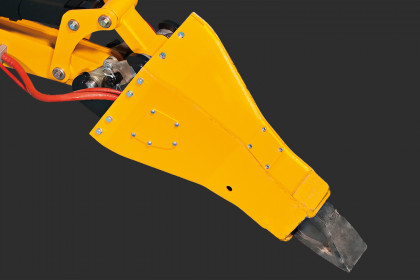

  • Patented heat-shielded process breaker
  • Diesel or electric powered

Hydraulic breaker in illustrations.
Load and stability diagram available on request.
BHB 455

Performance

Slewing speed
16 sec/360°
Transport speed, max.
2.8 km/h; 1.7 mph
Climbing inclination, max.
30°

Hydraulic system

Hydraulic system capacity
230 l; 60.8 US gal
Pump type
Variable load-sensing
System pressure
18,5 MPa; 2 683 psi
Increased pressure to attachment
25,0 MPa; 3 626 psi
Pump flow Diesel/50 Hz el. motor
148 l/min; 39 US gal/min
Pump flow 60 Hz el. motor
178 l/min; 47 US gal/min

Power system

Electric motor type
ABB
Power*
71 kW
Recommended fuse size*
125 A
Starting device
Soft start

Diesel performance

Type 1
Kohler Four-cylinder, water-cooled, 4-stroke engine
Engine
55.5 kW; 74 hp diesel EPA Tier 4, EU Stage V
Engine oil volume
15.6 l; 4.1 US gal
Type 2
Kubota Four-cylinder,
water-cooled, 4-stroke engine
Engine**
55.5 kW; 74 hp diesel EPA Tier 3, EU Stage IIIA
Engine oil volume
13.2 l; 3.5 US gal
Fuel tank capacity
80 l; 21 US gal
Freezing point
-40°C; -40°F

Control system

Control type
SmartRemote™, portable control
Signal code
Digital
Transfer
Professional radio/Cable
Range, radio
Up to 300 m

Weight

Machine weight***
11,600 kg; 25,574 lbs
Recommended attachment weight
600 kg; 1323 lbs

Noise level

Sound power level LWA**** El:
99 dB(A)
Sound power level LWA**** Diesel:
103 dB(A)

Power
55.5 D, 71 E
Width min.
2150 mm; 86.5 in
Height min.
2545 mm; 100,8 in
Vertical reach (incl. breaker)
10,000 mm; 394 in
Horizontal reach (incl. breaker)
9500 mm; 374 in

*Valid for 400 V/50 Hz and 440 V/60 Hz
**Rated power 74 kW: 99.2 hp at 2600 rpm (SAE J1995)
***Excluding options and attachment
****Measured according to directive 2000/14/EC, excl. attachment

油缸保护

油缸保护

适合高温环境,可提供高温及冲击保护

钢履带

钢履带

适合在热的及锋利的材料上操作

Download PDF
耐热油管

耐热油管

可用于高温作业

锤头强制冷却装置

锤头强制冷却装置

适合红热的工作场合

吊耳

吊耳

专用升降吊耳,方便连接

液压锤

相对于市场上的其他产品,Brokk液压锤的冲击频率更快,冲击功更大,同时依旧保持着较少的噪音和震动。

挖斗

装载挖斗的Brokk机器人将变身为世界上最灵活的挖掘机之一。
