BROKK 900

Made for heavy duty demolition and a robot to count on!

WANT OUR CATALOGUE? ORDER

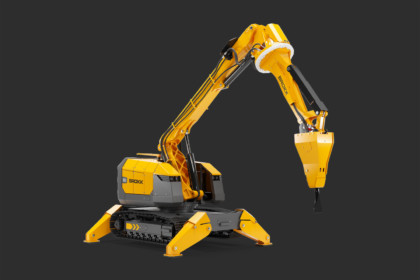

The Brokk 900 will open a whole new world of applications within heavy demolition and
the tunneling industry. Heavy jobs require heavy attachments, that’s the reason why Brokk 900 will be equipped with BHB 1500 which will give you more hitting power than any other demolition robot in the world. A major upgrade from its predecessor, Brokk 800, is that the Brokk 900 is equipped with SmartPower™ for optimized and more reliable runtime for longer periods of time. And with the new robust design, Brokk 900 will be a demolition robot to count on!





Read the press release here

  • Service friendly and robust design
  • Heavy breaker for heavy tasks
  • Reliable SmartPower™
  • Diesel or electric powered

Features

更坚固的履带系统

更坚固的履带系统

SmartPower™

SmartPower™

Brokk独有的遥控系统

Brokk独有的遥控系统

日常保养-打开机盖

日常保养-打开机盖

Hydraulic breaker in illustrations.
Load and stability diagram available on request.
BHB 1500

Performance

Slewing speed
16 sec/360°
Transport speed, max.
2.8 km/h; 1.7 mph
Climbing inclination, max.
30°

Hydraulic system

Hydraulic system capacity
230 l; 60.8 US gal
Pump type
Variable load-sensing
System pressure
18.5 MPa; 2683 psi
Increased pressure to attachment
25 MPa; 3626 psi
Pump flow Diesel/50Hz el. motor
148 l/min; 39 US gal/min
Pump flow 60Hz el. motor
178 l/min; 47 US gal/min

Electric motor

Electric motor type
ABB
Power*
71 kW
Recommended fuse size*
125 A
Starting device
Soft start

Diesel performance

Type 1
Kohler Four-cylinder, water-cooled, 4-stroke engine
Engine
55.5 kW; 74 hp diesel EPA Tier 4, EU Stage V
Engine oil volume
15.6 l; 4.1 US gal
Type 2
Kubota Four-cylinder, water-cooled, 4-stroke engine
Engine**
55.5 kW; 74 hp diesel EPA Tier 3, EU Stage IIIA
Engine oil volume
13.2 l; 3.5 US gal
Fuel tank capacity
80 l; 21 US gal
Freezing point
-40°C; -40°F

Control system

Control type
SmartRemote™, portable control
Signal code
Digital
Transfer
Professional radio/Cable
Range, radio
Up to 300 m

Weight

Machine weight***
11,400 kg; 25,133 lbs
Recommended attachment weight
1500 kg; 3307 lbs

Noise level

Sound power level LWA**** El:
99 dB(A)
Sound power level LWA**** Diesel:
103 dB(A)

Power
55.5 D, 71 E

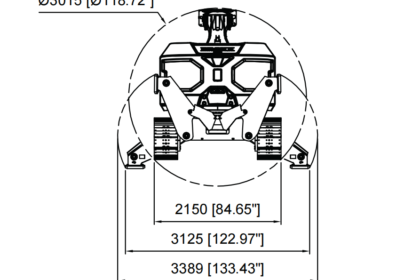

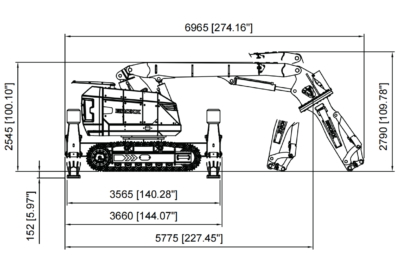

Width min.
2150 mm; 84.6 in
Height min.
2545 mm; 100.2 in

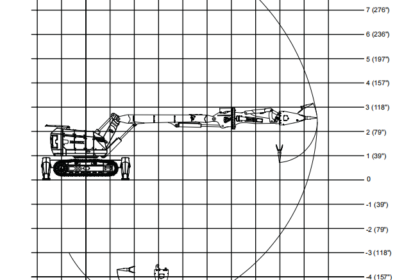

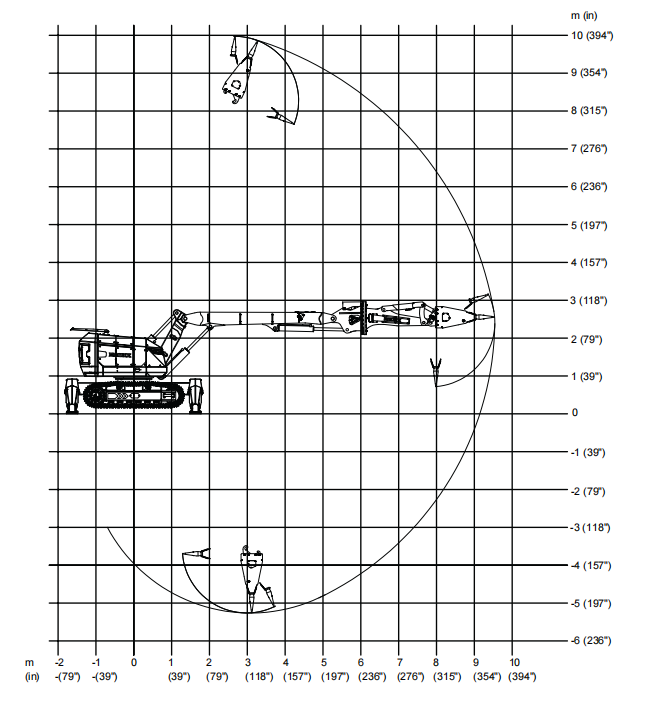

Vertical reach (incl. breaker)
9100 mm; 358 in
Horizontal reach (incl. breaker)
8500 mm; 335 in

*Valid for 400 V/50 Hz and 440 V/60 Hz
**Rated power 74 kW: 99.2 hp at 2600 rpm (SAE J1995)
***Excluding options and attachment
****Measured according to directive 2000/14/EC, excl. attachment

油缸保护

油缸保护

适合高温环境,可提供高温及冲击保护

钢履带

钢履带

适合在热的及锋利的材料上操作

Download PDF
空气冲洗

空气冲洗

有效防止灰尘进入锤体

额外的液压功能

额外的液压功能

Download PDF
吊耳

吊耳

专用升降吊耳,方便连接

橡胶脚垫

橡胶脚垫

适用于高温地面

液压锤

相对于市场上的其他产品,Brokk液压锤的冲击频率更快,冲击功更大,同时依旧保持着较少的噪音和震动。

混凝土剪

我们的混凝土剪拥有惊人的工作效率。可以自由旋转。

金属剪

适用于切割管材、钢筋、钢梁、型材、构筑物等。

挖斗

装载挖斗的Brokk机器人将变身为世界上最灵活的挖掘机之一。

密闭式抓斗(蛤壳式抓斗)

多种规格的密闭式抓斗让Brokk变身成为一个完美的运输机。可运输,装载,分拣各种材料及碎片。

多功能抓斗

Brokk提供多种不同规格的抓斗来提高您的工作效率

多功能搬运夹

These dedicated grapples are tailor-made tool for loading, sorting and separating debris, like rock, concrete, wood and/or metal work.

钻机

适用于在混凝土、岩石和密实土壤中钻各种类型的孔。还可以用于建筑工地的爆破孔。在有限的空间内,从各个角度和方向钻孔。

铣刨头

Brokk铣刨头是隧道掘进、特殊基础工程、爆破、挖沟和土壤搅拌的理想设备。适用于噪音和振动敏感区域。

钢梁抓取器

Brokk钢梁抓取器可应用在隧道及矿山行业,提供强大稳定的力量,多个支撑腿可确保安全性及灵活性,自重轻,承载力大。

湿喷头

通过连接高压水泵,你可以使用多功能机器人完成多种喷浆作业。

切割锯

替代传统手持切割设备切割如门窗框架,电缆管道等钢铁材料,同时不会使钢铁材料扭曲变形。
