BROKK 70

Store krefter i en kompakt kropp. En demoleringsrobot som eliminerer behovet for «Manpower».

VIL DU HA KATALOGEN VÅR? BESTIILL

Vår nye BROKK 70 er den perfekte løsningen for trygg og effektiv riving i de mest trange rommene. Sammenlignet med forgjengeren Brokk 60, yter Brokk 70 mer enn 100% ekstra krefter, den har den nyeste innovative Brokk SmartPower ™ -teknologien og et finjustert hydraulisk system som gjør den jevnere og raskere å betjene. Allikevel har vi beholdt de samme ekstremt kompakte dimensjonene. Med en vekt på under 560 kg smyger den seg gjennom de smaleste døråpningene og kan transporteres i en vanlig passasjerheis. Kort fortalt, En rivningsrobot som eliminerer behovet for manuelt rivearbeid.

  • 100% mer kraft!
  • 9,8 kW med Brokk SmartPower
  • Utkonkurrerer 10 arbeidere med håndmaskiner
  • Drives fremdeles kun med en 16A kurs
  • Ekstrem kompakt – smyger seg gjennom de smaleste dører og åpninger.

Forbedringer

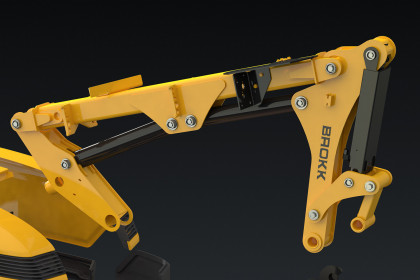

Tre arm system

Tre arm system

Daglig vedlikehold med deksler på

Daglig vedlikehold med deksler på

Støpte chassisdeler

Støpte chassisdeler

Hydraulisk hammer illustrert.
Lastdiagram på forespørsel.
BHB 105

Performance

Svinghastighet
6,5 s/245°
Transporthastighet, maks.
2,7 km/h; 1.7 mph
Transport Helling, maks.
30°

Hydraulic system

Hydraulikktank
27 l; 7.1 US gal
Pumpe type
Variabel aksialpumpe
Systemtrykk
18 MPa; 2 610 psi
Olje strøm maks. 50Hz and 60Hz
27 l/min; 7 US gal/min

Power system

Motor teknologi
SmartPower™
Elektrisk motor
ABB
Motoreffekt*
9,8 kW
Anbefalt sikrings strørrelse*
16 A
Startmetode
Direkte start

Control system

Type
SmartRemote, fjernkontroll
Signal
Digital
Overføring
Profesjonell radio/Kabel
Rekkevidde, radio
Opp til 300 m

Weight

Maskin vekt**
560 kg; 1 235 lb
Recommended attachment weight
105 kg; 231 lb

Noise level

Støynivå level LWA***
90 dB(A)

Width min.
597 mm; 23.5 in
Height min.
880 mm; 34.6 in
Vertical reach (incl. breaker)
3200 mm; 126 in
Horizontal reach (incl. breaker)
2700 mm; 106.3 in

*Gjelder 400V / 50Hz og 440V / 60 Hz
**Uten tilvalg og redskap
***Målt ihht direktiv 2000/14/EC

Extra hydraulic function

Extra hydraulic function

Required for certain tools only.

Last ned PDF
Brokk cover

Brokk cover

Protects the Brokk machine during transport or storage.

Forced draft cooling of machine

Forced draft cooling of machine

Suitable for high ambient temperatures. Flushes cool air into electrical cabinet and cooler.

Last ned PDF
Rubber caterpillar tracks

Rubber caterpillar tracks

An allround solution with great grip.

Steel pads

Steel pads

Suitable when machine is placed on very hot ground.

Last ned PDF
Lifting eyes

Lifting eyes

Dedicated lifting eyes for easy connection. (Regular lifting points standard on all machines.)

Last ned PDF
Forced draft cooling for breaker

Forced draft cooling for breaker

Suitable for red hot applications and flushes air through the breaker.

Last ned PDF
Waterspray

Waterspray

Sprays water when breaker is activated and binds dust efficiently.

Last ned PDF
Extra Cylinder Protection

Extra Cylinder Protection

Provides impact protection for C2 and C3 and works as a heat shield when working in red hot environments.

Last ned PDF

Breakers

Brokk’s hydraulic breakers are the most versatile and effective attachments for your Brokk robot

Concrete crushers

A concrete crushers allows you to do silent demolition with less noise, dust and vibration

Buckets

Turn your Brokk robot into a flexible excavator, optimal for confined spaces.

Metal shears

Our wide range of metal shears allows you to cut steel of many different sizes

Drum cutters

Brokk drum cutters are designed for trenching, demolition, and concrete surfaces

Sorting & demolition grapples

Sorting and demolition grapples are tailor-made and ideal for soft demolition and stripping structures inside of buildings.

Clamshell buckets

Brokk’s wide range of clamshell buckets transforms your Brokk robot into the perfect machine for sorting material and debris.

Multi Purpose Grapples

Make your work even more efficient with a multi purpose grapple from Brokk, the ideal attachment for loading, sorting, and separating debris.

Cut off saw

Replace hand-held equipment with a Brokk cut off saw.
