Brokk 110

Logoname
Stronger, smarter, tougher and more versatile. In an industry-leading compact size.

Want our catalog?

The Brokk 110 is the new generation of demolition robots. With 15% more power than the Brokk 100 (and a whopping 50% more power than the Brokk 90), the new Brokk SmartPower™ electrical power system and the reinforced Brokk SmartDesign™, it’s built to face almost anything. It is extraordinarily versatile in tight spaces, with its industry-leading compact size. It folds up into a surprisingly compact package that can climb stairs, fit in an elevator and be carried on a small truck or trailer. It’s the perfect solution in a wide variety of residential, commercial and industrial environments. A demolition robot that’s stronger, smarter and tougher.

  • Most compact and powerful machine of its size
  • 19,5 kW Brokk SmartPowerTM electrical system
  • Brokk SmartDesignTM and SmartRemoteTM
  • Operates on both 16 A and 32 A fuses
  • Real 360 degree working radius

Features

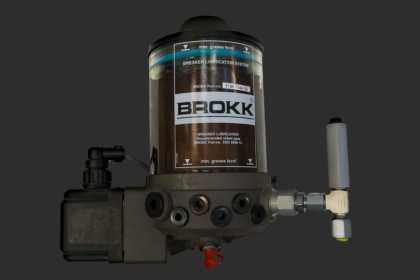

Big size grease container

Big size grease container

Hydraulic breaker in illustrations.
Load and stability diagram available on request.
BHB 155

Performance

Slewing speed
10 sec/360°
Transport speed, max.
2,5 km/h; 1.6 mph
Climbing inclination, max.
30°

Hydraulic system

Hydraulic system capacity
40 l; 10.6 US gal
Pump type
Variable load-sensing
System pressure
18,0 MPa; 2 611 psi
Pump flow 50Hz
54 l/min; 14 US gal/min
Pump flow 60Hz
65 l/min 17 US gal/min

Power system

Power technology
SmartPower
Electric motor type
ABB
Power*
19,5 kW
Recommended fuse size*
32 A
Minimum fuse size (reduced power)*
16 A
Starting device
Soft start/Direct start

Control system

Control type
SmartRemote, portable control
Signal code
Digital
Transfer
Professional radio/Cable
Range, radio
Up to 300 m

Weight

Machine weight**
990 kg; 2 183 lbs
Recommended attachment weight
160 kg; 353 lbs

Noise level

Sound power level LWA***
91 dB(A)

Width min.
780 mm; 30.7 in
Height min.
1147 mm; 45.2 in
Vertical reach (incl. breaker)
4300 mm; 169 in
Horizontal reach (incl. breaker)
3700 mm; 146 in

*Valid for 400V/50Hz and 440V/60Hz
**Excluding options and attachment
***Measured according to directive 2000/14/EC, excl. attachment

Cylinder protection for cy 2 and cy 3

Cylinder protection for cy 2 and cy 3

Suitable for hot environments, act as heat- and impact protection.

Download PDF
Heat resistant hoses

Heat resistant hoses

Suitable for red hot applications.

Download PDF
Forced draft cooling for breaker

Forced draft cooling for breaker

Suitable for red hot applications and flushes air through the breaker.

Download PDF
Steel pads

Steel pads

Suitable when machine is placed on very hot ground.

Download PDF
Waterspray

Waterspray

Sprays water when breaker is activated and binds dust efficiently.

Download PDF
Airflushing through breaker

Airflushing through breaker

Prevents dust from entering breaker, suitable for upwards breaking and underwater breaking.

Counterweight

Counterweight

Allows the use of extra heavy tools.

Download PDF
Lifting eyes

Lifting eyes

Dedicated lifting eyes for easy connection. (Regular lifting points standard on all machines.)

Download PDF
Extra hydraulic function

Extra hydraulic function

Required for certain tools only.

Download PDF
Brokk cover

Brokk cover

Protects the Brokk machine during transport or storage.

Breakers

Brokk breakers are made for maximising your efficiency. There are breakers for each model, optimizing the power of your specifik Brokk machine. It hits harder and faster then other breakers on the market, still with less noise and vibrations.

Concrete crushers

Our crushers are just as scaringly effective as the look. Provides free rotation and has exchangeable tips. The larger crushers also has additional teeth and pulverizing pads.

Metal shears

The sane and easy way to cut pipes, bars, girders, profiles, structures etc. Different jaw sets, and replaceable cutting and breaking tips available for some models. Rotator with continuous rotation.

Buckets

With a bucket on your machine, your Brokk transforms to world’s most agile excavator, perfect for digging, loading, sorting & separation of material and debris.

Clamshell buckets

A variety of clamshell buckets transforms the Brokk to the perfect machine for loading, sorting & separation and transporting material and debris.

Multi Purpose Grapples

Brokk offers a broad range of grapples that helps you do the job more effective. The perfect tool for loading, sorting and separating debris (rock, concrete, wood, metal work). Rotator with continuous rotation.

Sorting & demolition grapples

These dedicated grapples are tailor-made tool for loading, sorting and separating debris (rock, concrete, wood, metal work). Rotator with continuous rotation.

Planers

Our effective BCP planers come with a valve for flow-control and motor protection, dust extraction system and mounting kit. The PCB Planers also have a swinging support rotation angle of 135°

Drilling

All-round attachment for drilling all types of holes in concrete, rock and compact soils. Blast holes at construction sites. Drilling in confined spaces, in all angels and directions.

Drum cutters

The Brokk drum cutters is ideal for tunneling, special foundation work, demolition, trenching and soil mixing. Suited for noise and vibration sensitive areas. They come complete with mounting kit and valves for flow-control and motor protection.

Cut off saw

Replaces hand-held equipment to cut steel work like door and window frames, conduits for electric cables. Leaves a nice clean cut and does not distort and twist the steel. Saw discs for different materials available.

Side angling device

The side angling device gives that extra working angle that can be useful in narrow space
