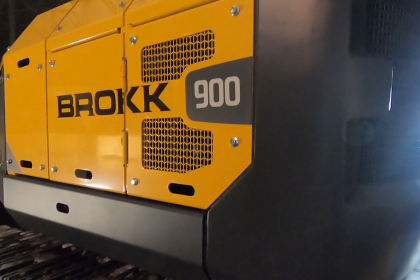

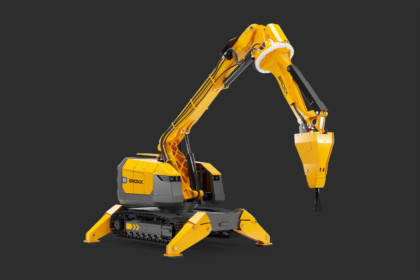

Brokk 900

Made for heavy duty demolition and a robot to count on!

Want our catalog?

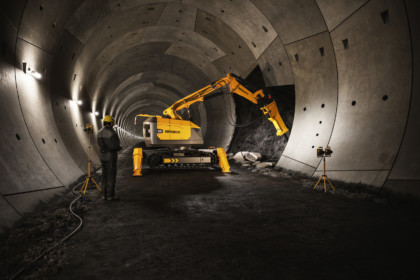

The Brokk 900 will open a whole new world of applications within heavy demolition and
the tunneling industry. Heavy jobs require heavy attachments, that’s the reason why Brokk 900 will be equipped with BHB 1500 which will give you more hitting power than any other demolition robot in the world. A major upgrade from its predecessor, Brokk 800, is that the Brokk 900 is equipped with SmartPower™ for optimized and more reliable runtime for longer periods of time. And with the new robust design, Brokk 900 will be a demolition robot to count on!

Read the press release here

Service friendly and robust design
Heavy breaker for heavy tasks
Reliable SmartPower™
Diesel or electric powered

Features

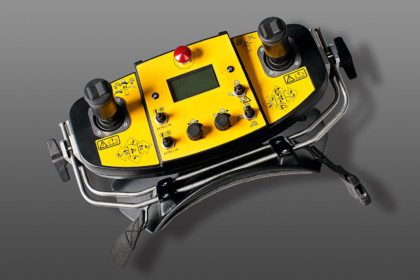

Brokk unique control system

SmartPower™

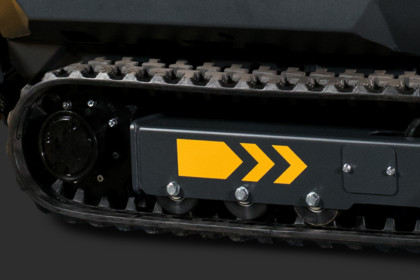

Longer and stronger track system

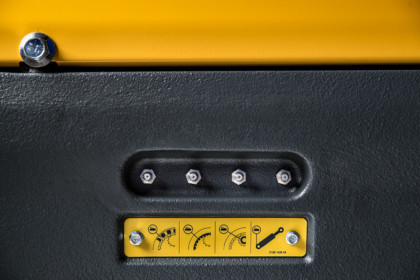

Daily maintenance - hoods on

Product sheet

Compare models

Performance

Slewing speed: 16 sec/360°
Transport speed, max.: 2.8 km/h; 1.7 mph
Climbing inclination, max.: 30°

Hydraulic system

Hydraulic system capacity: 230 l; 60.8 US gal
Pump type: Variable load-sensing
System pressure: 18.5 MPa; 2683 psi
Increased pressure to attachment: 25 MPa; 3626 psi
Pump flow Diesel/50Hz el. motor: 148 l/min; 39 US gal/min
Pump flow 60Hz el. motor: 178 l/min; 47 US gal/min

Electric motor

Electric motor type: ABB
Power*: 71 kW
Recommended fuse size*: 125 A
Starting device: Soft start

Diesel performance

Type 1: Kohler Four-cylinder, water-cooled, 4-stroke engine
Engine: 55.5 kW; 74 hp diesel EPA Tier 4, EU Stage V
Engine oil volume: 15.6 l; 4.1 US gal
Type 2: Kubota Four-cylinder, water-cooled, 4-stroke engine
Engine**: 55.5 kW; 74 hp diesel EPA Tier 3, EU Stage IIIA
Engine oil volume: 13.2 l; 3.5 US gal
Fuel tank capacity: 80 l; 21 US gal
Freezing point: -40°C; -40°F

Control system

Control type: SmartRemote™, portable control
Signal code: Digital
Transfer: Professional radio/Cable
Range, radio: Up to 300 m

Weight

Machine weight***: 11,400 kg; 25,133 lbs
Recommended attachment weight: 1500 kg; 3307 lbs

Noise level

Sound power level L_WA**** El:: 99 dB(A)
Sound power level L_WA**** Diesel:: 103 dB(A)

Power: 55.5 D, 71 E
Width min.: 2150 mm; 84.6 in
Height min.: 2545 mm; 100.2 in
Vertical reach (incl. breaker): 9100 mm; 358 in
Horizontal reach (incl. breaker): 8500 mm; 335 in

*Valid for 400 V/50 Hz and 440 V/60 Hz
**Rated power 74 kW: 99.2 hp at 2600 rpm (SAE J1995)
***Excluding options and attachment
****Measured according to directive 2000/14/EC, excl. attachment

Product sheet

Compare models

Cylinder protection for cy 2 and cy 3

Suitable for hot environments, act as heat- and impact protection.

Download PDF

Steel caterpillar tracks

Suitable when operating in hot or sharp material.

Download PDF

Airflushing through breaker

Prevents dust from entering breaker, suitable for upwards breaking and underwater breaking.

Extra hydraulic function

Required for certain tools only.

Download PDF

Lifting eyes

Dedicated lifting eyes for easy connection. (Regular lifting points standard on all machines.)

Download PDF

Forced draft cooling of machine

Suitable for high ambient temperatures. Flushes cool air into electrical cabinet and cooler.

Download PDF

Steel pads

Suitable when machine is placed on very hot ground.

Download PDF

Compare models

Breakers

Brokk breakers are made for maximising your efficiency. There are breakers for each model, optimizing the power of your specifik Brokk machine. It hits harder and faster then other breakers on the market, still with less noise and vibrations.

Concrete crushers

Our crushers are just as scaringly effective as the look. Provides free rotation and has exchangeable tips. The larger crushers also has additional teeth and pulverizing pads.

Metal shears

The sane and easy way to cut pipes, bars, girders, profiles, structures etc. Different jaw sets, and replaceable cutting and breaking tips available for some models. Rotator with continuous rotation.

Buckets

With a bucket on your machine, your Brokk transforms to world’s most agile excavator, perfect for digging, loading, sorting & separation of material and debris.

Clamshell buckets

A variety of clamshell buckets transforms the Brokk to the perfect machine for loading, sorting & separation and transporting material and debris.

Multi Purpose Grapples

Brokk offers a broad range of grapples that helps you do the job more effective. The perfect tool for loading, sorting and separating debris (rock, concrete, wood, metal work). Rotator with continuous rotation.

Sorting & demolition grapples

These dedicated grapples are tailor-made tool for loading, sorting and separating debris (rock, concrete, wood, metal work). Rotator with continuous rotation.

Drilling

All-round attachment for drilling all types of holes in concrete, rock and compact soils. Blast holes at construction sites. Drilling in confined spaces, in all angels and directions.

Drum cutters

The Brokk drum cutters is ideal for tunneling, special foundation work, demolition, trenching and soil mixing. Suited for noise and vibration sensitive areas. They come complete with mounting kit and valves for flow-control and motor protection.

Beam Grapple

The Brokk beam grapple is perfect for tunneling and mining. Strong and robust. High and constant tilt force. Flexible and safe with variable support legs. Light-weight & big capacity.

Shotcrete

By connecting a high pressure pump machinery to this tool you are able do a variety of shotcrete work with your remote-controlled machine. Gunning and air pressure depends on concrete pump.

Cut off saw

Replaces hand-held equipment to cut steel work like door and window frames, conduits for electric cables. Leaves a nice clean cut and does not distort and twist the steel. Saw discs for different materials available.

Compare models
