BROKK 170+
Meet the new generation Brokk 170+, the ultimate demolition robot tailor-made for the construction industry
Want our catalog?
Despite its unassuming size, this lightweight game-changer packs a punch, boasting a robust breaker and a remarkably powerful — yet nearly silent— concrete crusher. Its compact design allows the Brokk 170+ to effortlessly navigate through standard doorways, while its innovative Brokk SmartPower+ electrical system delivers unparalleled power and proven reliability.
- Increase in uptime and more power over time
- Smart sensors and a sophisticated Brokk operator support system
- Ergonomically designed control box weighing less than 3kg and tilted joysticks
- Equipped with a 24 kW Brokk SmartPower+ electrical system
- Operates on a 32 A fuse for efficiency
- Lightweight and powerful
Features
Big size grease container
SmartPower™
Daily maintenance - hoods on
- Hydraulic breaker in illustrations.
Load and stability diagram available on request. - BHB 205
Performance
- Slewing speed
- 10 sec/360°
- Transport speed, max.
- 2.1 km/h; 1.3 mph
- Climbing inclination, max.
- 30°
Hydraulic system
- Hydraulic system capacity
- 85 l; 22.5 US gal
- Pump type
- Variable load-sensing
- System pressure
- 18 MPa; 2611 psi
- Increased pressure to attachment
- 23 MPa; 3336 psi
- Pump flow 50Hz
- 69 l/min; 18 US gal/min
- Pump flow 60Hz
- 83 l/min; 21 US gal/min
Power system
- Power technology
- Brokk SmartPower+
- Electric motor type
- ABB
- Power*
- 24 kW
- Recommended fuse size*
- 63 A
- Starting device
- Soft start/Direct start
Control system
- Control type
- Portable
- Signal code
- Digital
- Transfer
- Professional radio/Cable
- Range, radio
- Up to 300 m
Weight
- Machine weight**
- 1600 kg; 3527 lbs
- Recommended attachment weight
- 270 kg; 595 lbs
Noise level
- Sound power level LWA***
- 87 dB(A)
- Width min.
- 780 mm; 30.7 in
- Height min.
- 1254 mm; 49.4 in
- Vertical reach (incl. breaker)
- 4800 mm; 189 in
- Horizontal reach (incl. breaker)
- 4400 mm; 173 in
*Valid for 400 V/50 Hz and 440 V/60 Hz
**Excluding attachment and extra equipment
***Measured according to directive 2000/14/EC
Brokk 170+: Related info

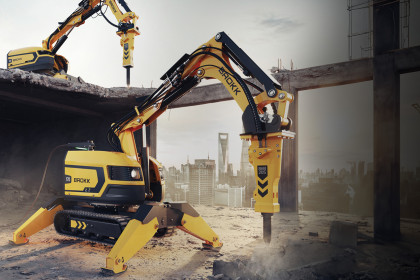

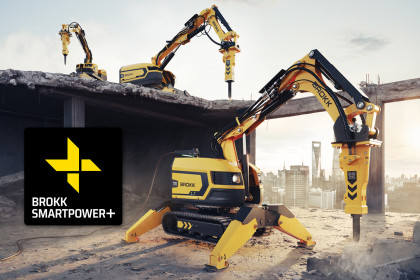

Brokk SmartPower+
