The mean, green demolition machine. The most environmental-friendly diesel demolition robot on the planet.

WANT OUR CATALOGUE? ORDER

The Brokk 520D outperforms all other diesel-powered machines of its size. It is stronger, faster, and has longer reach, all while maintaining the same compact size as its predecessor, the Brokk 400D. The Brokk 520D is perfect for powerful demolition in places where there is not a reliable power supply and makes it the perfect machine for the most demanding tasks in all industries.

  • 7 meter reach
  • Diesel-powered
  • Reliable Brokk SmartPower™
  • Compatible with all Brokk 400 and Brokk 500 attachments

Features

Divided hose connection – outriggers

Divided hose connection – outriggers

Hydraulic breaker in illustrations.
Load and stability diagram available on request
BHB 705

Performance

Slewing speed
16 sec/360°
Transport speed, max.
2.5 km/h; 1.6 mph
Climbing inclination, max.
30°

Hydraulic system

Hydraulic system capacity
145 l; 38 US gal
Pump type
Variable load-sensing
System pressure
18 MPa; 2611 psi
Increased pressure to attachment
24 MPa; 3481 psi
Pump flow
130 l/min; 34 US gal/min

Diesel performance

Type 1)
Kohler Four-cylinder, water-cooled, 4-stroke engine
Engine
55 kW; 74 hp diesel EPA Tier 4, EU Stage IV
Engine oil volume
11.5 l; 3 US gal
Type 2)
Kubota Four-cylinder, water-cooled, 4-stroke engine
Engine***
55 kW; 74 hp diesel EPA Tier 3, EU Stage IIIA
Engine oil volume
13.2 l; 3.5 US gal
Fuel tank capacity
70 l; 18 US gal
Coolant volume
10 l; 2.6 gal
Freezing point
-40ºC; -40ºF

Control system

Control type
SmartRemote™, portable
Signal code
Digital
Transfer
Professional radio/Cable
Range, radio
Up to 300 m

Weight

Machine weight*
5500 kg; 12,125 lbs
Recommended attachment weight
700 kg; 1543 lbs

Noise level

Sound power level LWA**
101 dB(A)

Power
55 D
Width min.
1600 mm; 63 in
Height min.
1680 mm; 66.1 in
Vertical reach (incl. breaker)
7300 mm; 280 in
Horizontal reach (incl. breaker)
6700 mm; 264 in

*Excluding options and attachment
**Measured according to directive 2000/14/EC, excl. attachment
***Rated power 74 kW: 99,2 hp at 2,600 rpm (SAE J1995)

Cylinder protection for cy 2 and cy 3

Cylinder protection for cy 2 and cy 3

Suitable for hot environments, act as heat- and impact protection.

Download PDF
Heavy duty boom

Heavy duty boom

Suitable for tough breaker applications with cy 4 ­protected under boom.

Heat resistant hoses

Heat resistant hoses

Suitable for red hot applications.

Download PDF
Forced draft cooling of machine

Forced draft cooling of machine

Suitable for high ambient temperatures. Flushes cool air into electrical cabinet and cooler.

Download PDF
Forced draft cooling for breaker

Forced draft cooling for breaker

Suitable for red hot applications and flushes air through the breaker.

Download PDF
Steel pads

Steel pads

Suitable when machine is placed on very hot ground.

Download PDF
Airflushing through breaker

Airflushing through breaker

Prevents dust from entering breaker, suitable for upwards breaking and underwater breaking.

Waterspray

Waterspray

Sprays water when breaker is activated and binds dust efficiently.

Download PDF
Extra hydraulic function

Extra hydraulic function

Required for certain tools only.

Download PDF
Counterweight

Counterweight

Allows the use of extra heavy tools.

Download PDF

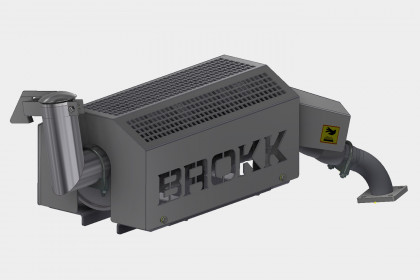

Particulate filter

Particulate filter

Reduces the emissions from the diesel engine.

Download PDF
Lifting eyes

Lifting eyes

Dedicated lifting eyes for easy connection. (Regular lifting points standard on all machines.)

Download PDF
Brokk cover

Brokk cover

Protects the Brokk machine during transport or storage.

Steel caterpillar tracks

Steel caterpillar tracks

Suitable when operating in hot or sharp material.

Download PDF
Rubber caterpillar tracks

Rubber caterpillar tracks

An allround solution with great grip.

Breakers

Brokk breakers are made for maximising your efficiency. There are breakers for each model, optimizing the power of your specifik Brokk machine. It hits harder and faster then other breakers on the market, still with less noise and vibrations.

Concrete crushers

Our crushers are just as scaringly effective as the look. Provides free rotation and has exchangeable tips. The larger crushers also has additional teeth and pulverizing pads.

Metal shears

Our wide range of metal shears allows you to cut steel of many different sizes

Buckets

With a bucket on your machine, your Brokk transforms to world’s most agile excavator, perfect for digging, loading, sorting & separation of material and debris.

Clamshell buckets

A variety of clamshell buckets transforms the Brokk to the perfect machine for loading, sorting & separation and transporting material and debris.

Multi Purpose Grapples

Brokk offers a broad range of grapples that helps you do the job more effective. The perfect tool for loading, sorting and separating debris (rock, concrete, wood, metal work). Rotator with continuous rotation.

Sorting & demolition grapples

These dedicated grapples are tailor-made tool for loading, sorting and separating debris (rock, concrete, wood, metal work). Rotator with continuous rotation.

Planers

Our effective BCP planers come with a valve for flow-control and motor protection, dust extraction system and mounting kit. The PCB Planers also have a swinging support rotation angle of 135°

Drilling

All-round attachment for drilling all types of holes in concrete, rock and compact soils. Blast holes at construction sites. Drilling in confined spaces, in all angels and directions.

Drum cutters

The Brokk drum cutters is ideal for tunneling, special foundation work, demolition, trenching and soil mixing. Suited for noise and vibration sensitive areas. They come complete with mounting kit and valves for flow-control and motor protection.

Beam Grapple

The Brokk beam grapple is perfect for tunneling and mining. Strong and robust. High and constant tilt force. Flexible and safe with variable support legs. Light-weight & big capacity.

Shotcrete

By connecting a high pressure pump machinery to this tool you are able do a variety of shotcrete work with your remote-controlled machine. Gunning and air pressure depends on concrete pump.

Cut off saw

Replaces hand-held equipment to cut steel work like door and window frames, conduits for electric cables. Leaves a nice clean cut and does not distort and twist the steel. Saw discs for different materials available.

Splitters

Break hard rocks with a light, powerful, and versatile Brokk splitter

Side angling device

The side angling device gives that extra working angle that can be useful in narrow space
