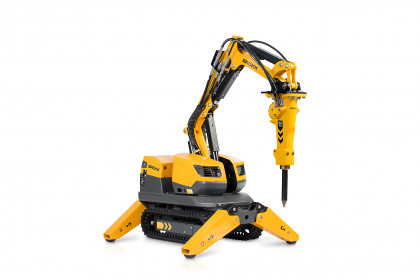

BROKK 70
Great power in minimal spaces. A demolition robot that eliminates all need for manual demolition work.
BESTELLEN SIE UNSEREN KATALOG
The Brokk 70 is the perfect solution for safe and efficient demolition in confined spaces. Compared to its predecessor, the Brokk 60, the Brokk 70 has a stunning 100% more demolition capacity. Its combination of power, small size, and light weight allow for work in places where mechanized demolition has previously been impossible. Equipped with SmartPower™ and a smooth hydraulic system, the Brokk 70 features enormous power in a miniature size. With the Brokk 70, there is no need to continue using harmful hand tools.
- Weighs less than 560 kg
- 9.8 kW Brokk SmartPower™ electrical system
- Powered with only 16 A electricity fuse
- Extremely compact - gets through the narrowest doorways
AUSSTATTUNG

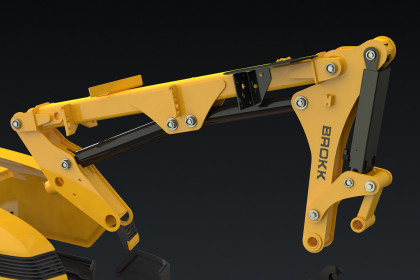

3-Arm-System
SmartPower™

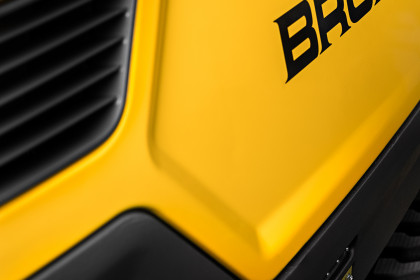

Chassis-Teile aus Gußeisen
Tägliche Wartung – ohne Abdeckungen zu entfernen
- Hydraulic breaker in illustrations.
Load and stability diagram available on request. - BHB 105
Performance
- Slewing speed
- 6,5 sec/245°
- Transport speed, max.
- 2.7 km/h; 1.7 mph
- Climbing inclination, max.
- 30°
Hydraulic system
- Hydraulic system capacity
- 27 l; 7.1 US gal
- Pump type
- Variable load-sensing
- System pressure
- 17 MPa; 2466 psi
- Pump flow max. 50Hz and 60Hz
- 27 l/min; 7 US gal/min
Power system
- Power technology
- SmartPower™
- Electric motor type
- ABB
- Power*
- 9.8 kW
- Recommended fuse size*
- 16 A
- Starting device
- Direct start
Control system
- Control type
- SmartRemote™, portable
- Signal code
- Digital
- Transfer
- Professional radio/Cable
- Range, radio
- Up to 300 m
Weight
- Machine weight**
- 560 kg; 1235 lbs
- Recommended attachment weight
- 105 kg; 231 lbs
Noise level
- Sound power level LWA***
- 90 dB(A)
- Breite, min.
- 597 mm; 23.5 in
- Höhe min.
- 880 mm; 34.6 in
- Vertikale Reichweite (inkl. Abbruchhammer)
- 3200 mm; 126 in
- Horizontale Reichweite (inkl. Abbruchhammer)
- 2700 mm; 106 in
*Valid for 400 V/50 Hz and 440 V/60 Hz
**Excluding attachment and extra equipment
***Measured according to directive 2000/14/EC
Brokk 70: ERGÄNZENDE INFORMATIONEN

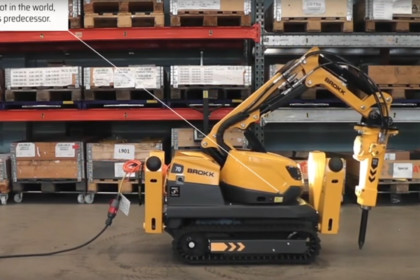

Introducing the new Brokk 70
The new Brokk 70: 100% more power Brokk introduces another new machine at Bauma in Munich. This follows last year’s introduction of four new models and extends the…

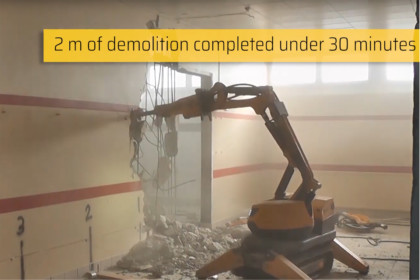

Brokk 70 takes demolition to the next level
