Whether you require the power or precision for a clean out - Brokk 900 Rotoboom will always get the job done.

WANT OUR CATALOG? ORDER

The Brokk 900 will open a whole new world of applications within heavy demolition and the tunneling industry. Heavy jobs require heavy attachments, that’s the reason why Brokk 900 will be equipped with BHB 1500 which will give you more hitting power than any other demolition robot in the world. A major upgrade from its predecessor, Brokk 800, is that the Brokk 900 is equipped with SmartPower™ for optimized and more reliable runtime for longer periods of time. And with the new robust design, Brokk 900 will be a demolition robot to count on!





Read the press release here

  • Specifically designed for tough metal processing applications
  • Rotating arm system provide optimal flexibility
  • Patented heat-shielded process breaker
  • Diesel or electric powered

Features

Brokk unique control system

Brokk unique control system

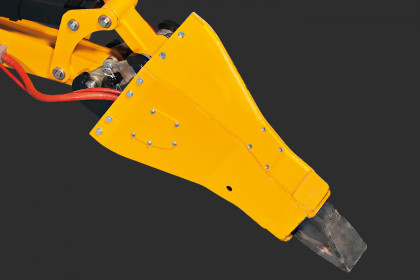

Heat protected breaker

Heat protected breaker

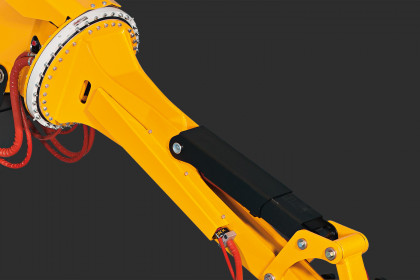

Rotation boom

Rotation boom

SmartPower™

SmartPower™

Hydraulic breaker in illustrations.
Load and stability diagram available on request.
BHB 455

Performance

Slewing speed
16 sec/360°
Transport speed, max.
2.8 km/h; 1.7 mph
Climbing inclination, max.
30°

Hydraulic system

Hydraulic system capacity
230 l; 60.8 US gal
Pump type
Variable load-sensing
System pressure
18,5 MPa; 2 683 psi
Increased pressure to attachment
25,0 MPa; 3 626 psi
Pump flow Diesel/50 Hz el. motor
148 l/min; 39 US gal/min
Pump flow 60 Hz el. motor
178 l/min; 47 US gal/min

Power system

Electric motor type
ABB
Power*
71 kW
Recommended fuse size*
125 A
Starting device
Soft start

Diesel performance

Type 1
Kohler Four-cylinder, water-cooled, 4-stroke engine
Engine
55.5 kW; 74 hp diesel EPA Tier 4, EU Stage V
Engine oil volume
15.6 l; 4.1 US gal
Type 2
Kubota Four-cylinder,
water-cooled, 4-stroke engine
Engine**
55.5 kW; 74 hp diesel EPA Tier 3, EU Stage IIIA
Engine oil volume
13.2 l; 3.5 US gal
Fuel tank capacity
80 l; 21 US gal
Freezing point
-40°C; -40°F

Control system

Control type
SmartRemote™, portable control
Signal code
Digital
Transfer
Professional radio/Cable
Range, radio
Up to 300 m

Weight

Machine weight***
11,600 kg; 25,574 lbs
Recommended attachment weight
600 kg; 1323 lbs

Noise level

Sound power level LWA**** El:
99 dB(A)
Sound power level LWA**** Diesel:
103 dB(A)

Power
55.5 D, 71 E
Width min.
2150 mm; 86.5 in
Height min.
2545 mm; 100,8 in
Vertical reach (incl. breaker)
10,000 mm; 394 in
Horizontal reach (incl. breaker)
9500 mm; 374 in

*Valid for 400 V/50 Hz and 440 V/60 Hz
**Rated power 74 kW: 99.2 hp at 2600 rpm (SAE J1995)
***Excluding options and attachment
****Measured according to directive 2000/14/EC, excl. attachment

Extra Cylinder Protection

Extra Cylinder Protection

Provides impact protection for C2 and C3 and works as a heat shield when working in red hot environments.

Download PDF
Steel caterpillar tracks

Steel caterpillar tracks

Suitable when operating in hot or sharp material.

Download PDF
Heat resistant hoses

Heat resistant hoses

Suitable for red hot applications.

Download PDF
Forced draft cooling of machine

Forced draft cooling of machine

Suitable for high ambient temperatures. Flushes cool air into electrical cabinet and cooler.

Download PDF
Forced draft cooling for breaker

Forced draft cooling for breaker

Suitable for red hot applications and flushes air through the breaker.

Download PDF
Lifting eyes

Lifting eyes

Dedicated lifting eyes for easy connection. (Regular lifting points standard on all machines.)

Download PDF

Breakers

Brokk’s hydraulic breakers are the most versatile and effective attachments for your Brokk robot

Buckets

Turn your Brokk robot into a flexible excavator, optimal for confined spaces.
