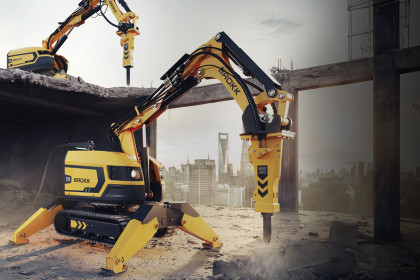

BROKK 200+

The newest generation Brokk 200+ defies its size by accommodating heavier tools to outperform any competition

WANT OUR CATALOG? ORDER

With added smart sensors and a sophisticated operator support system relaying updates in real-time, the Brokk 200+ provides added intelligence and unmatched power-to-size ratio. The newest generation Brokk 200+ defies its size by accommodating heavy attachments, outperforming any competition.

  • Increase in uptime and more power over time
  • Smart sensors and a sophisticated Brokk operator support system
  • Ergonomically designed control box weighing less than 3kg and tilted joysticks
  • Unleashes impressive demolition power
  • Remarkably small footprint given its power and reach
  • Employs a 27.5 kW Brokk SmartPower+ electrical system
  • Specifically engineered and optimized for heavy, high-performance attachments

Features

Brokk SmartPower+

Brokk SmartPower+

Visual status communication system

Visual status communication system

Ergonomic control box

Ergonomic control box

Brokk QuickSwitch

Brokk QuickSwitch

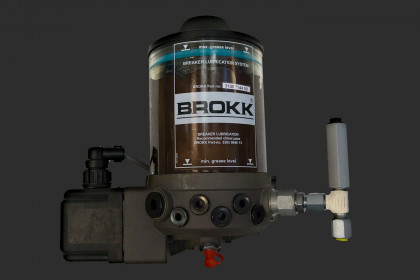

Big size grease container

Big size grease container

Daily maintenance - hoods on

Daily maintenance - hoods on

Hydraulic breaker in illustrations.
Load and stability diagram available on request.
BHB 305

Performance

Slewing speed
10 sec/360°
Transport speed, max.
2.1 km/h; 1.3 mph
Climbing inclination, max.
30°

Hydraulic system

Hydraulic system capacity
85 l; 22.5 US gal
Pump type
Variable load-sensing
System pressure
18 MPa; 2611 psi
System pressure, increased to attachment, max.
23 MPa; 3336 psi
Pump flow 50Hz
85 l/min; 22.5 US gal/min
Pump flow 60Hz
102 l/min; 27 US gal/min

Power system

Power technology
SmartPower+
Electric motor type
ABB
Power*
27.5 kW
Recommended fuse size*
63 A
Starting device
Soft start/Direct start

Control system

Control unit
Portable
Signal code
Digital
Transfer
Professional radio/Cable
Range, radio
Up to 300 m

Weight

Machine weight**
2100 kg; 4630 lbs
Recommended max. attachment weight
350 kg; 772 lbs

Noise level

Sound power level LWA***
87 dB(A)

Width min.
780 mm; 30.7 in
Height min.
1351 mm; 53.2 in
Vertical reach (incl. breaker)
5450 mm; 215 in
Horizontal reach (incl. breaker)
5100 mm; 201 in

*Valid for 400V/50Hz and 440V/60Hz
**Excluding options and attachment
***Measured according to directive 2000/14/EC, excl. attachment

Extra Cylinder Protection

Extra Cylinder Protection

Provides impact protection for C2 and C3 and works as a heat shield when working in red hot environments.

Download PDF
Rubber caterpillar tracks

Rubber caterpillar tracks

An allround solution with great grip.

Steel caterpillar tracks

Steel caterpillar tracks

Suitable when operating in hot or sharp material.

Download PDF
Heat resistant hoses

Heat resistant hoses

Suitable for red hot applications.

Download PDF
Forced draft cooling for breaker

Forced draft cooling for breaker

Suitable for red hot applications and flushes air through the breaker.

Download PDF
Forced draft cooling of machine

Forced draft cooling of machine

Suitable for high ambient temperatures. Flushes cool air into electrical cabinet and cooler.

Download PDF
Steel pads

Steel pads

Suitable when machine is placed on very hot ground.

Download PDF
Air flushing for breaker

Air flushing for breaker

Air flushing prevents dust from entering the breaker, especially useful for upwards breaking and a must for underwater use.

Waterspray

Waterspray

Sprays water when breaker is activated and binds dust efficiently.

Download PDF
Extra hydraulic function

Extra hydraulic function

Required for certain tools only.

Download PDF
Counterweight

Counterweight

Allows the use of extra heavy tools.

Download PDF
Lifting eyes

Lifting eyes

Dedicated lifting eyes for easy connection. (Regular lifting points standard on all machines.)

Download PDF

Breakers

Brokk’s hydraulic breakers are the most versatile and effective attachments for your Brokk robot

Concrete crushers

A concrete crushers allows you to do silent demolition with less noise, dust and vibration

Metal shears

Our wide range of metal shears allows you to cut steel of many different sizes

Buckets

Turn your Brokk robot into a flexible excavator, optimal for confined spaces.

Clamshell buckets

Brokk’s wide range of clamshell buckets transforms your Brokk robot into the perfect machine for sorting material and debris.

Multi Purpose Grapples

Make your work even more efficient with a multi purpose grapple from Brokk, the ideal attachment for loading, sorting, and separating debris.

Sorting & demolition grapples

Sorting and demolition grapples are tailor-made and ideal for soft demolition and stripping structures inside of buildings.

Planers

Brokk planers remove concrete, paint, asbestos, or other layers in a controlled manner up to a certain depth

Drilling

Drill holes in rock, concrete, or compact soil in open or limited spaces

Drum cutters

Brokk drum cutters are designed for trenching, demolition, and concrete surfaces

Shot crete

This attachment can turn your Brokk robot into a shotcrete machine for confined spaces.

Cut off saw

Replace hand-held equipment with a Brokk cut off saw.

Side angling device

Give your Brokk hydraulic breaker that extra angle for extremely confined spaces.
