Brokk 900

Built for heavy-duty demolition—a robot you can count on!

Read moreRead less

The Brokk 900 opens new possibilities in heavy demolition and tunneling. Designed to handle heavy jobs with ease, it is equipped with the BHB 1500 breaker, providing more hitting power than any other demolition robot worldwide. With Brokk SmartPower™ for optimized and reliable runtime, and a robust new design, the Brokk 900 is a demolition robot you can count on.

Read the press release here

Weight Machine weight: Excluding attachment and extra equipment
11,400 kg 25,133 lbs
Power Power: Electric motor, valid for 400 V/50 Hz and 440 V/60 Hz. Diesel version: 55.5 kW; 74 hp.
71 kW
Productivity Estimated production rate with breaker in normal strength rebar reinforced concrete (approx)
12,1 m³/h
Weight*
11,400 kg 25,133 lbs
Power**
71 kW
Productivity***
12,1 m³/h
* Machine weight: Excluding attachment and extra equipment ** Power: Electric motor, valid for 400 V/50 Hz and 440 V/60 Hz. Diesel version: 55.5 kW; 74 hp. *** Estimated production rate with breaker in normal strength rebar reinforced concrete (approx)

Technical Specifications

Expand All
Hydraulic breaker in illustrations. Load and stability diagram available on request.BHB 1500
Performance
Slewing speed16 sec/360°
Transport speed, max.2.8 km/h; 1.7 mph
Climbing inclination, max.30°
Hydraulic system
Hydraulic system capacity230 l; 60.8 US gal
Pump typeVariable load-sensing
System pressure18.5 MPa; 2683 psi
Increased pressure to attachment25 MPa; 3626 psi
Pump flow Diesel/50Hz el. motor148 l/min; 39 US gal/min
Pump flow 60Hz el. motor178 l/min; 47 US gal/min
Electric motor
Electric motor typeABB
Power*71 kW
Recommended fuse size*125 A
Starting deviceSoft start
Diesel performance
Type 1Kohler Four-cylinder, water-cooled, 4-stroke engine
Engine55.5 kW; 74 hp diesel EPA Tier 4, EU Stage V
Engine oil volume15.6 l; 4.1 US gal
Type 2Kubota Four-cylinder, water-cooled, 4-stroke engine
Engine**55.5 kW; 74 hp diesel EPA Tier 3, EU Stage IIIA
Engine oil volume13.2 l; 3.5 US gal
Fuel tank capacity80 l; 21 US gal
Freezing point-40°C; -40°F
Control system

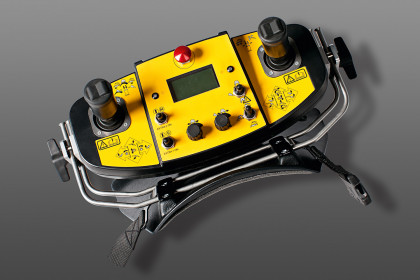

Control typeSmartRemote™, portable control
Signal codeDigital
TransferProfessional radio/Cable
Range, radioUp to 300 m
Weight
Machine weight***11,400 kg; 25,133 lbs
Recommended attachment weight1500 kg; 3307 lbs
Noise level
Sound power level LWA**** El:99 dB(A)
Sound power level LWA**** Diesel:103 dB(A)
Dimensions
Power55.5 D, 71 E
Width min2150 mm; 84.6 in
Height min2545 mm; 100.2 in
V reach incl breaker9100 mm; 358 in
H reach incl breaker8500 mm; 335 in
Dimensions
71 kilowatt
71 kilowatt
Valid for 400 V/50 Hz and 440 V/60 Hz
Rated power 74 kW: 99.2 hp at 2600 rpm (SAE J1995)
Excluding options and attachment
*Measured according to directive 2000/14/EC, excl. attachment

Where the 900 works

Attachments for Brokk 900

Breaker

Brokk’s hydraulic breakers are the most versatile and effective attachments for your Brokk robot

Explore

Concrete Crusher

A concrete crushers allows you to do silent demolition with less noise, dust and vibration

Explore

Metal Shears

Our wide range of metal shears allows you to cut steel of many different sizes

Explore

Bucket

Turn your Brokk robot into a flexible excavator, optimal for confined spaces.

Explore

Clamshell Bucket

Brokk’s wide range of clamshell buckets transforms your Brokk robot into the perfect machine for sorting material and debris.

Explore

Multi-Purpose Grapple

Make your work even more efficient with a multi purpose grapple from Brokk, the ideal attachment for loading, sorting, and separating debris.

Explore

Sorting & Demolition Grapple

Sorting and demolition grapples are tailor-made and ideal for soft demolition and stripping structures inside of buildings.

Explore

Drilling Equipment

Drill holes in rock, concrete, or compact soil in open or limited spaces

Explore

Drum Cutter

Brokk drum cutters are designed for trenching, demolition, and concrete surfaces

Explore

Beam Grapple

Equipped with a beam grapple, your Brokk robot becomes an excellent and flexible machine for installing steel beams in tunnel and mining applications.

Explore

Shotcrete

This attachment can turn your Brokk robot into a shotcrete machine for confined spaces.

Explore

Cut-Off Saw

Replace hand-held equipment with a Brokk cut off saw.

Explore
