Great Power in Minimal Spaces. A demolition robot that eliminates all need for manual demolition work.
Products overview

WANT OUR CATALOG? ORDER

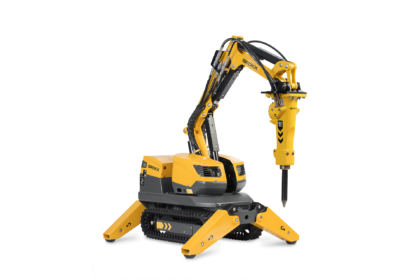

The new BROKK 70 is the perfect solution for bringing safe and efficient demolition to the most confined spaces. Compared to its predecessor Brokk 60, the Brokk 70 packs more than 100% extra demolition power, comes with the latest innovative Brokk SmartPower™ technology and a fine-tuned hydraulic system that makes it smoother and faster to operate. Still, it keeps the same extremely compact dimensions. Weighing less than 560 kg it fits through the narrowest doorways and can be transported in an ordinary passenger elevator. A demolition robot that eliminates all need for manual demolition work.

  • 100% more power!
  • 9,8 kW Brokk SmartPower™ electric powertrain
  • Outperforms 10 people with jackhammers
  • Operates on just 16 A electrical fuse
  • Extremely compact – gets through even the smallest of doorways

Features

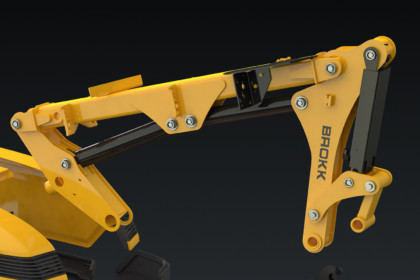

Three part arm system

Three part arm system

Allows for extraordinary reach and power in all directions, providing maximum precision and accuracy.
SmartPower™

SmartPower™

The world’s most intelligent power system, designed specifically for heavy duty demolition.
Daily maintenance - hoods on

Daily maintenance - hoods on

All daily and weekly maintenance can be carried out without lifting a machine cover, even on the jobsite.
Casted chassis parts

Casted chassis parts

Casted turn-table corners protect critical components from damage.
Product sheet
Compare models
Read more about our edge

Hydraulic breaker in illustrations.
Load and stability diagram available on request.
BHB 105

Performance

Slewing speed
6,5 s/245°
Transport speed, max.
2,7 km/h; 1.7 mph
Climbing inclination, max.
30°

Hydraulic system

Hydraulic system capacity
27 l; 7.1 US gal
Pump type
Variable load-sensing
System pressure
18 MPa; 2 610 psi
Pump flow max. 50Hz and 60Hz
27 l/min; 7 US gal/min

Power system

Power technology
SmartPower™
Electric motor type
ABB
Power*
9,8 kW
Recommended fuse size*
16 A
Starting device
Direct start

Control system

Control type
SmartRemote, portable
Signal code
Digital
Transfer
Professional radio/Cable
Range, radio
Up to 300 m

Weight

Machine weight**
560 kg; 1 235 lb
Recommended attachment weight
105 kg; 231 lb

Noise level

Sound power level LWA***
90 dB(A)

Width min.
597 mm; 23.5 in
Height min.
880 mm; 34.6 in
Vertical reach (incl. breaker)
3200 mm; 126 in
Horizontal reach (incl. breaker)
2700 mm; 106.3 in

*Valid for 400V/50Hz and 440V/60Hz
**Excluding attachment and extra equipment
***Measured according to directive 2000/14/EC

Compare models
Read more about our edge
Steel caterpillar tracks

Steel caterpillar tracks

Suitable when operating in hot or sharp material.

Download PDF
Extra hydraulic function

Extra hydraulic function

Required for certain tools only.

Download PDF
Brokk cover

Brokk cover

Protects the Brokk machine during transport or storage.

Forced draft cooling of machine

Forced draft cooling of machine

Suitable for high ambient temperatures. Flushes cool air into electrical cabinet and cooler.

Download PDF
Rubber caterpillar tracks

Rubber caterpillar tracks

An all around solution with great grip.

Steel pads

Steel pads

Suitable when machine is placed on very hot ground.

Download PDF
Lifting eyes

Lifting eyes

Dedicated lifting eyes for easy connection. (Regular lifting points standard on all machines.)

Download PDF
Forced draft cooling for breaker

Forced draft cooling for breaker

Suitable for red hot applications and flushes air through the breaker.

Download PDF
Waterspray

Waterspray

Sprays water when breaker is activated and binds dust efficiently.

Download PDF
Cylinder protection for cy 2 and cy 3

Cylinder protection for cy 2 and cy 3

Suitable for hot environments, act as heat- and impact protection.

Download PDF
Compare models
Read more about our options
Breakers

Breakers

Brokk breakers are made for maximizing your efficiency. There are breakers for each model, optimizing the power of your specific Brokk machine. It hits harder and faster then other breakers on the market, still with less noise and vibrations.

Read more
Concrete crushers

Concrete crushers

Our crushers are just as scaringly effective as they look. Provides free rotation and has exchangeable tips. The larger crushers also has additional teeth and pulverizing pads.

Read more
Drum Cutters

Drum Cutters

The Brokk drum cutters is ideal for tunneling, special foundation work, demolition, trenching and soil mixing. Suited for noise and vibration sensitive areas. They come complete with mounting kit and valves for flow-control and motor protection.

Read more
Buckets

Buckets

With a bucket on your machine, your Brokk transforms to world’s most agile excavator, perfect for digging, loading, sorting & separation of material and debris.

Read more
Clamshell buckets

Clamshell buckets

A variety of clamshell buckets transforms the Brokk to the perfect machine for loading, sorting & separation and transporting material and debris.

Read more
Multi Purpose Grapples

Multi Purpose Grapples

Brokk offers a broad range of demolition grapples that help you do the job more effectively. Perfect attachment for loading, sorting and separating debris (rock, concrete, wood, metal work). Rotator allows for continuous rotation.

Read more
Sorting & demolition grapples

Sorting & demolition grapples

These dedicated grapples are tailor-made tool for loading, sorting and separating debris (rock, concrete, wood, metal work). Rotator with continuous rotation.

Read more
Cut Off Saw

Cut Off Saw

Replaces hand-held equipment to cut steel work like door and window frames, conduits for electric cables. Leaves a nice clean cut and does not distort and twist the steel. Saw discs for different materials available.

Read more
Compare models
Read more about our attachments

Brokk 70: Related info

Brokk 70 Offers More Power for Confined Spaces

Brokk 70 Offers More Power for Confined Spaces

Brokk, the world’s leading manufacturer of remote-controlled demolition machines, unveiled the Brokk 70 during bauma 2019. Armed with SmartPower™ — the company’s signature intelligent power management system —…
Read more

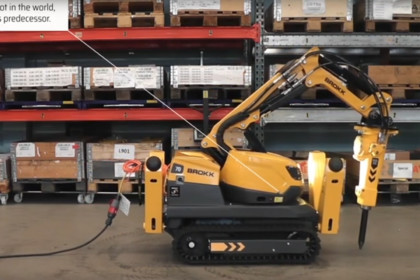

Brokk 70 – The Mini Super Hero

Brokk 70 – The Mini Super Hero

Brokk 70 - The mini super hero
Brokk 70 takes demolition to the next level

Brokk 70 takes demolition to the next level

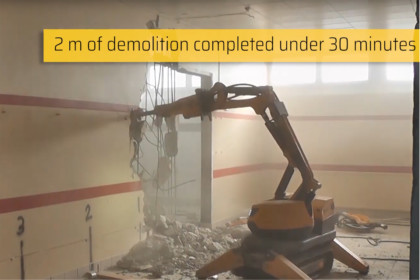

Brokk 70, the smallest demolition robot in the world proves it's efficiency by demolishing a reinforced concrete wall in this time lapse video.
