Brokk 500

Logoname
Adding 40 percent of smart power to size up effectiveness of your next project.

WANT OUR CATALOGUE? ORDER

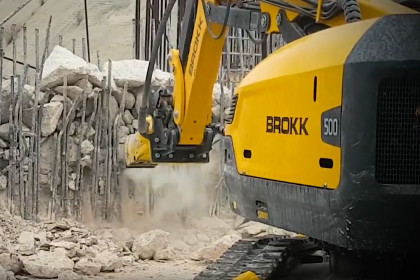

The new Brokk 500 brings 40% more demolition power than its predecessor. And it provides the ability to size up the attachments, such as the powerful BHB 705 breaker. With the new reinforced design and additional work reach over the Brokk 400, while keeping about the same size and weight, it sets a new benchmark in power-to-size ratio in its segment. The Brokk 500 is equipped with Brokk SmartPowerTM – an intelligent and hardened electrical system that increases the power output for maximum performance and industry leading availability over the lifetime of the machine. To top it off, the machine also adds the clever improvements of SmartDesignTM that will simplify the daily maintenance. In short – stronger, smarter and tougher!

  • 40% more demolition power with the BHB 705 breaker
  • Increased work reach and radius
  • 41 kW Brokk SmartPowerTM electrical system
  • Brokk SmartDesignTM and SmartRemoteTM
  • Compatible with all Brokk 400 attachments

Features

Divided hose connection – outriggers

Divided hose connection – outriggers

Big size grease container

Big size grease container

Brokk unique control system

Brokk unique control system

Daily maintenance - hoods on

Daily maintenance - hoods on

Reinforced headlight protection

Reinforced headlight protection

SmartPower™

SmartPower™

Hydraulic breaker in illustrations.
Load and stability diagram available on request.
BHB 705

Performance

Slewing speed
16 sec/360°
Transport speed, max.
2,5 km/h; 1.6 mph
Climbing inclination, max.
30°

Hydraulic system

Hydraulic system capacity
145 l; 38 US gal
Pump type
Variable load-sensing
System pressure
18,0 MPa; 2 611 psi
Increased pressure to attachment
24,0 MPa; 3 481 psi
Pump flow 50Hz
115 l/min; 30 US gal/min
Pump flow 60Hz
130 l/min; 34 US gal/min

Power system

Power technology
SmartPower
Electric motor type
ABB
Power*
41 kW
Recommended fuse size*
63 A
Starting device
Soft start/Direct start

Control system

Control type
SmartRemote, portable control
Signal code
Digital
Transfer
Professional radio/Cable
Range, radio
Up to 300 m

Weight

Machine weight**
5 200 kg; 11464 lbs
Recommended attachment weight
700 kg; 1543 lbs

Noise level

Sound power level LWA***
100 dB(A)

Width min.
1600 mm; 63 in
Height min.
1677 mm; 66 in
Vertical reach (incl. breaker)
7300 mm; 287 in
Horizontal reach (incl. breaker)
7000 mm; 276 in

*Valid for 400V/50Hz and 440V/60Hz
**Excluding options and attachment
***Measured according to directive 2000/14/EC, excl. attachment

Cylinder protection for cy 2 and cy 3

Cylinder protection for cy 2 and cy 3

Suitable for hot environments, act as heat- and impact protection.

Download PDF
Heavy duty boom

Heavy duty boom

Suitable for tough breaker applications with cy 4 ­protected under boom.

Heat resistant hoses

Heat resistant hoses

Suitable for red hot applications.

Download PDF
Forced draft cooling of machine

Forced draft cooling of machine

Suitable for high ambient temperatures. Flushes cool air into electrical cabinet and cooler.

Download PDF
Forced draft cooling for breaker

Forced draft cooling for breaker

Suitable for red hot applications and flushes air through the breaker.

Download PDF
Steel pads

Steel pads

Suitable when machine is placed on very hot ground.

Download PDF
Airflushing through breaker

Airflushing through breaker

Prevents dust from entering breaker, suitable for upwards breaking and underwater breaking.

Waterspray

Waterspray

Sprays water when breaker is activated and binds dust efficiently.

Download PDF
Extra hydraulic function

Extra hydraulic function

Required for certain tools only.

Download PDF
Counterweight

Counterweight

Allows the use of extra heavy tools.

Download PDF
Cable reel

Cable reel

Spring loaded cable reel keeps track of the power cable.

Download PDF
Lifting eyes

Lifting eyes

Dedicated lifting eyes for easy connection. (Regular lifting points standard on all machines.)

Download PDF
Brokk cover

Brokk cover

Protects the Brokk machine during transport or storage.

Breakers

Brokk breakers are made for maximising your efficiency. There are breakers for each model, optimizing the power of your specifik Brokk machine. It hits harder and faster then other breakers on the market, still with less noise and vibrations.

Concrete crushers

Our crushers are just as scaringly effective as the look. Provides free rotation and has exchangeable tips. The larger crushers also has additional teeth and pulverizing pads.

Metal shears

The sane and easy way to cut pipes, bars, girders, profiles, structures etc. Different jaw sets, and replaceable cutting and breaking tips available for some models. Rotator with continuous rotation.

Buckets

With a bucket on your machine, your Brokk transforms to world’s most agile excavator, perfect for digging, loading, sorting & separation of material and debris.

Clamshell buckets

A variety of clamshell buckets transforms the Brokk to the perfect machine for loading, sorting & separation and transporting material and debris.

Multi Purpose Grapples

Brokk offers a broad range of grapples that helps you do the job more effective. The perfect tool for loading, sorting and separating debris (rock, concrete, wood, metal work). Rotator with continuous rotation.

Sorting & demolition grapples

These dedicated grapples are tailor-made tool for loading, sorting and separating debris (rock, concrete, wood, metal work). Rotator with continuous rotation.

Planers

Our effective BCP planers come with a valve for flow-control and motor protection, dust extraction system and mounting kit. The PCB Planers also have a swinging support rotation angle of 135°

Drilling

All-round attachment for drilling all types of holes in concrete, rock and compact soils. Blast holes at construction sites. Drilling in confined spaces, in all angels and directions.

Drum cutters

The Brokk drum cutters is ideal for tunneling, special foundation work, demolition, trenching and soil mixing. Suited for noise and vibration sensitive areas. They come complete with mounting kit and valves for flow-control and motor protection.

Beam Grapple

The Brokk beam grapple is perfect for tunneling and mining. Strong and robust. High and constant tilt force. Flexible and safe with variable support legs. Light-weight & big capacity.

Shotcrete

By connecting a high pressure pump machinery to this tool you are able do a variety of shotcrete work with your remote-controlled machine. Gunning and air pressure depends on concrete pump.

Cut off saw

Replaces hand-held equipment to cut steel work like door and window frames, conduits for electric cables. Leaves a nice clean cut and does not distort and twist the steel. Saw discs for different materials available.

Splitters

A light, powerful and versatile splitter with built-in booster for maximum power in a very slim design. Rotable with adjustable splitting direction. Different mounting options. Automatic lubrication.

Side angling device

The side angling device gives that extra working angle that can be useful in narrow space
