The world’s smallest diesel-driven demolition machine. Outstanding power in tight spaces.

WANT OUR CATALOG? ORDER

The world’s smallest diesel-driven demolition machine, the Brokk 120DII offers flexibility without compromise. Its small size enables it to enter through any standard door opening and makes it easy to maneuver in tight spaces. Running cordless, it can operate for a minimum of eight hours without refueling. The MarkII version comes with the full Brokk SmartConcept — SmartPowerTM, SmartDesignTM and SmartRemoteTM. And it keeps the outstanding power and performance that make Brokk machines unique.

  • World's smallest diesel-driven demolition machine
  • Ideal for sites that lack a reliable power supply
  • Rugged and reliable Brokk SmartPowerTM
  • Brokk SmartDesignTM and SmartRemoteTM
  • Tool compatibility with Brokk 110
  • Fast tracking speed for high mobility

Features

Brokk unique control system

Brokk unique control system

Big size grease container

Big size grease container

SmartPower™

SmartPower™

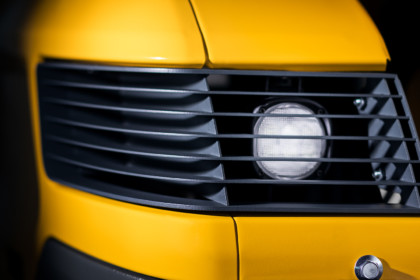

Protected components

Protected components

Longer and stronger track system

Longer and stronger track system

Green diesel motor

Green diesel motor

Daily maintenance - hoods on

Daily maintenance - hoods on

Hydraulic breaker in illustrations.
Load and stability diagram available on request.
BHB 155

Performance

Slewing speed
10 sec/360°
Transport speed, max.
3 km/h; 1.9 mph
Climbing inclination, max.
30°

Hydraulic system

Hydraulic system capacity
45 l; 12 US gal
Pump type
Gear pump with fixed displacement
System pressure*
18 MPa; 2 610 psi
Pump flow
50 l/min; 13 US gal/min

Diesel performance

Type
Three-cylinder, water-cooled, 4-stroke engine
Engine
18,5 kW; 24.8 hp diesel EPA Tier 4
Fuel tank capacity
30 l; 7.9 US gal
Engine oil volume
5,1 l; 1.35 US gal
Coolant volume
4,4 l; 1.2 US gal
Freezing point
-40ºC; -40ºF

Control system

Control type
SmartRemote, portable control
Signal code
Digital
Transfer
Professional radio/Cable
Range, radio
Up to 300 m

Weight

Machine weight**
1230 kg; 2712 lbs
Recommended attachment weight
160 kg; 353 lbs

Noise level

Sound power level LWA***
101 dB(A)

Pump flow, 50Hz
50 l/min; 13.3 gal/min
Power
18.5 D
Width min.
780 mm; 30.7 in
Height min.
1250 mm; 49.2 in
Vertical reach (incl. breaker)
4300 mm; 169 in
Horizontal reach (incl. breaker)
3700 mm; 146 in

*Hydraulic pressure can be increased depending on the attachment
**Excluding options and attachment
***Measured according to directive 2000/14/EC, excl. attachment

Cylinder protection for cy 2 and cy 3

Cylinder protection for cy 2 and cy 3

Suitable for hot environments, act as heat- and impact protection.

Download PDF
Heat resistant hoses

Heat resistant hoses

Suitable for red hot applications.

Download PDF
Forced draft cooling of machine

Forced draft cooling of machine

Suitable for high ambient temperatures. Flushes cool air into electrical cabinet and cooler.

Download PDF
Forced draft cooling for breaker

Forced draft cooling for breaker

Suitable for red hot applications and flushes air through the breaker.

Download PDF
Steel pads

Steel pads

Suitable when machine is placed on very hot ground.

Download PDF
Airflushing through breaker

Airflushing through breaker

Prevents dust from entering breaker, suitable for upwards breaking and underwater breaking.

Waterspray

Waterspray

Sprays water when breaker is activated and binds dust efficiently.

Download PDF
Extra hydraulic function

Extra hydraulic function

Required for certain tools only.

Download PDF
Counterweight

Counterweight

Allows the use of extra heavy tools.

Download PDF
Lifting eyes

Lifting eyes

Dedicated lifting eyes for easy connection. (Regular lifting points standard on all machines.)

Download PDF
Brokk cover

Brokk cover

Protects the Brokk machine during transport or storage.

Breakers

Maximize your effiency with our Brokk breakers. They hit harder and faster than other breakers on the market, still with less noise and vibration.

Concrete crushers

Our crushers are just as effective as the look. Provides free rotation and has exchangeable tips.

Metal shears

The sane and easy way to cut pipes, bars, girders, profiles, structures etc.

Buckets

With a bucket on your machine, your Brokk transforms to the world’s most agile excavator.

Clamshell buckets

A variety of clamshell buckets transforms the Brokk to the perfect machine for loading, sorting & separation and transporting debris.

Multi Purpose Grapples

Brokk offers a broad range of grapples that helps you do the job more effective.

Sorting & demolition grapples

These dedicated grapples are tailor-made tool for loading, sorting and separating debris, like rock, concrete, wood and/or metal work.

Planers

Our effective BCP planers come with a valve for flow-control and motor protection, dust extraction system and mounting kit.

Drilling

All-round attachments for drilling all types of holes in concrete, rock and compact soils. Drilling in confined spaces, in all angels and directions.

Drum cutters

The Brokk drum cutters is ideal for tunneling, special foundation work, demolition, trenching and soil mixing.

Cut off saw

Replaces hand-held equipment to cut steel work like door and window frames, conduits for electric cables. Leaves a nice clean cut.

Side angling device

The side angling device gives that extra working angle that can be useful in narrow space
