Brokk 200
A muscle, reach and size ratio masterpiece. And now, this demolition robot also outsmarts the competition.
WANT OUR CATALOG? ORDER
Watch out, there’s a new weight class in town! Weighing only 2.1 tons, the Brokk 200 uses 27.5 kilowatts of Brokk SmartPower™ to carry attachments in a weight class higher than its size. Equipped with the breaker BHB 305 or the Darda CC480 concrete crusher, the Brokk 200 is unbeatable. A compact masterpiece with incredible strength and reach.
- Brutal demolition power
- Small footprint for its power and reach
- 27.5 kW Brokk SmartPower™ electrical system
- Built and optimized for heavy, high performance attachments
Features

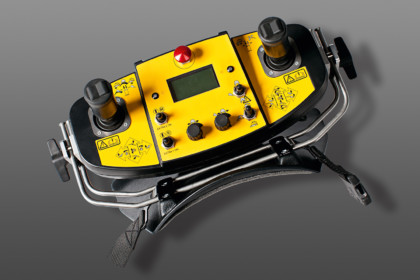

Brokk unique control system
Superior radio technology with an easy to read display. Proven reliability with a reach up to 328 yards with no delay.
Large grease container
Large grease container requires refilling less often while ensuring proper lubrication.
SmartPower™
The world’s most intelligent power system, designed specifically for heavy duty demolition.
Daily maintenance - hoods on
All daily and weekly maintenance can be carried out without lifting a machine cover, even on the jobsite.
- Hydraulic breaker in illustrations.
Load and stability diagram available on request. - BHB 305
Performance
- Slewing speed
- 10 sec/360°
- Transport speed, max.
- 2.1 km/h; 1.3 mph
- Climbing inclination, max.
- 30°
Hydraulic system
- Hydraulic system capacity
- 85 l; 22.5 US gal
- Pump type
- Variable load-sensing
- System pressure
- 18 MPa; 2611 psi
- System pressure, increased to attachment, max.
- 23 MPa; 3336 psi
- Pump flow 50Hz
- 85 l/min; 22.5 US gal/min
- Pump flow 60Hz
- 102 l/min; 27 US gal/min
Power system
- Power technology
- SmartPower™
- Electric motor type
- ABB
- Power*
- 27.5 kW
- Recommended fuse size*
- 63 A
- Starting device
- Soft start/Direct start
Control system
- Control type
- SmartRemote™, portable
- Signal code
- Digital
- Transfer
- Professional radio/Cable
- Range, radio
- Up to 300 m
Weight
- Machine weight**
- 2100 kg; 4630 lbs
- Recommended max. attachment weight
- 350 kg; 772 lbs
Noise level
- Sound power level LWA***
- 87 dB(A)
- Width min.
- 780 mm; 30.7 in
- Height min.
- 1351 mm; 53.2 in
- Vertical reach (incl. breaker)
- 5450 mm; 215 in
- Horizontal reach (incl. breaker)
- 5100 mm; 201 in
*Valid for 400V/50Hz and 440V/60Hz
**Excluding options and attachment
***Measured according to directive 2000/14/EC, excl. attachment
