A robot you can count on for heavy-duty demolition!

WANT OUR CATALOG? ORDER

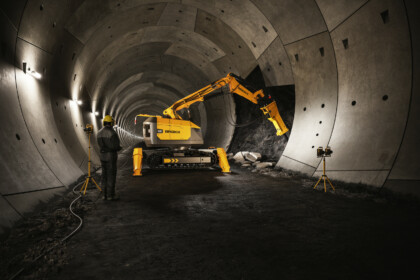

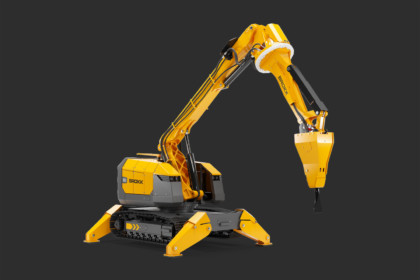

The Brokk 900 opens a whole new world of applications within heavy demolition and the tunneling industry. Heavy jobs require heavy attachments, which is why the Brokk 900 is equipped with the BHB 1500 hydraulic breaker, giving you more hitting power than any other demolition robot in the world. In a major upgrade from its predecessor, the Brokk 800, the Brokk 900 is equipped with SmartPower™ for optimized and more reliable runtime. With the new robust design, the Brokk 900 is a demolition robot to count on!



Read the press release here

  • Service friendly and robust design
  • Heavy breaker for heavy tasks
  • Reliable SmartPower™
  • Diesel or electric powered

Features

Brokk unique control system

Brokk unique control system

SmartPower™

SmartPower™

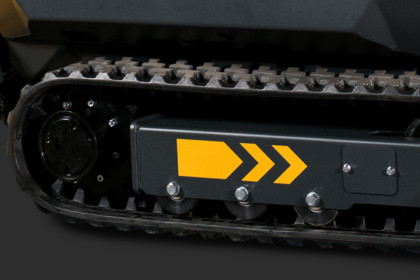

Longer and stronger track system

Longer and stronger track system

Daily maintenance - hoods on

Daily maintenance - hoods on

Hydraulic breaker in illustrations.
Load and stability diagram available on request.
BHB 1500

Performance

Slewing speed
16 sec/360°
Transport speed, max.
2.8 km/h; 1.7 mph
Climbing inclination, max.
30°

Hydraulic system

Hydraulic system capacity
230 l; 60.8 US gal
Pump type
Variable load-sensing
System pressure
18.5 MPa; 2683 psi
Increased pressure to attachment
25 MPa; 3626 psi
Pump flow Diesel/50Hz el. motor
148 l/min; 39 US gal/min
Pump flow 60Hz el. motor
178 l/min; 47 US gal/min

Electric motor

Electric motor type
ABB
Power*
71 kW
Recommended fuse size*
125 A
Starting device
Soft start

Diesel performance

Type 1
Kohler Four-cylinder, water-cooled, 4-stroke engine
Engine
55.5 kW; 74 hp diesel EPA Tier 4, EU Stage V
Engine oil volume
15.6 l; 4.1 US gal
Type 2
Kubota Four-cylinder, water-cooled, 4-stroke engine
Engine**
55.5 kW; 74 hp diesel EPA Tier 3, EU Stage IIIA
Engine oil volume
13.2 l; 3.5 US gal
Fuel tank capacity
80 l; 21 US gal
Freezing point
-40°C; -40°F

Control system

Control type
SmartRemote™, portable control
Signal code
Digital
Transfer
Professional radio/Cable
Range, radio
Up to 300 m

Weight

Machine weight***
11,400 kg; 25,133 lbs
Recommended attachment weight
1500 kg; 3307 lbs

Noise level

Sound power level LWA**** El:
99 dB(A)
Sound power level LWA**** Diesel:
103 dB(A)

Power
55.5 D, 71 E
Width min.
2150 mm; 84.6 in
Height min.
2545 mm; 100.2 in
Vertical reach (incl. breaker)
9100 mm; 358 in
Horizontal reach (incl. breaker)
8500 mm; 335 in

*Valid for 400 V/50 Hz and 440 V/60 Hz
**Rated power 74 kW: 99.2 hp at 2600 rpm (SAE J1995)
***Excluding options and attachment
****Measured according to directive 2000/14/EC, excl. attachment

Cylinder protection for cy 2 and cy 3

Cylinder protection for cy 2 and cy 3

Suitable for hot environments, act as heat- and impact protection.

Download PDF
Steel caterpillar tracks

Steel caterpillar tracks

Suitable when operating in hot or sharp material.

Download PDF
Airflushing through breaker

Airflushing through breaker

Prevents dust from entering breaker, suitable for upwards breaking and underwater breaking.

Extra hydraulic function

Extra hydraulic function

Required for certain tools only.

Download PDF
Lifting eyes

Lifting eyes

Dedicated lifting eyes for easy connection. (Regular lifting points standard on all machines.)

Download PDF
Forced draft cooling of machine

Forced draft cooling of machine

Suitable for high ambient temperatures. Flushes cool air into electrical cabinet and cooler.

Download PDF
Steel pads

Steel pads

Suitable when machine is placed on very hot ground.

Download PDF

Breakers

Brokk breakers are made for maximising your efficiency. There are breakers for each model, optimizing the power of your specifik Brokk machine. It hits harder and faster then other breakers on the market, still with less noise and vibrations.

Concrete crushers

Our crushers are just as scaringly effective as the look. Provides free rotation and has exchangeable tips. The larger crushers also has additional teeth and pulverizing pads.

Metal Shears

The sane and easy way to cut pipes, bars, girders, profiles, structures etc. Different jaw sets, and replaceable cutting and breaking tips available for some models. Rotator with continuous rotation.

Buckets

With a bucket on your machine, your Brokk transforms to world’s most agile excavator, perfect for digging, loading, sorting & separation of material and debris.

Clamshell buckets

A variety of clamshell buckets transforms the Brokk to the perfect machine for loading, sorting & separation and transporting material and debris.

Multi Purpose Grapples

Brokk offers a broad range of grapples that helps you do the job more effective. The perfect tool for loading, sorting and separating debris (rock, concrete, wood, metal work). Rotator with continuous rotation.

Sorting & demolition grapples

These dedicated grapples are tailor-made tool for loading, sorting and separating debris (rock, concrete, wood, metal work). Rotator with continuous rotation.

Drilling Attachments

All-round attachment for drilling all types of holes in concrete, rock and compact soils. Blast holes at construction sites. Drilling in confined spaces, in all angels and directions.

Drum Cutters

The Brokk drum cutters is ideal for tunneling, special foundation work, demolition, trenching and soil mixing. Suited for noise and vibration sensitive areas. They come complete with mounting kit and valves for flow-control and motor protection.

Beam Grapple

The Brokk beam grapple is perfect for tunneling and mining. Strong and robust. High and constant tilt force. Flexible and safe with variable support legs. Light-weight & big capacity.

Shotcrete

By connecting a high pressure pump machinery to this tool you are able do a variety of shotcrete work with your remote-controlled machine. Gunning and air pressure depends on concrete pump.

Cut Off Saw

Replaces hand-held equipment to cut steel work like door and window frames, conduits for electric cables. Leaves a nice clean cut and does not distort and twist the steel. Saw discs for different materials available.
