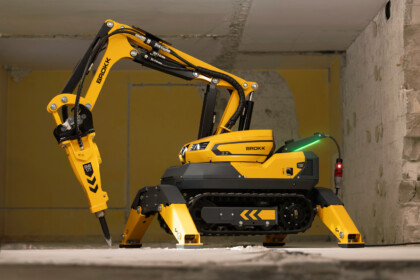

BROKK 130+

The Brokk 130+ sets a new benchmark, delivering more power, endurance, and efficiency than ever before.

WANT OUR CATALOGUE? ORDER

The Brokk 130+ sets a new benchmark in demolition, delivering more power, endurance, and efficiency than ever before. Designed for demanding environments, it combines high impact energy with intelligent power management, making it ideal for confined and hard-to-reach areas. With a 360-degree working radius, it ensures maximum flexibility in any operation.

Equipped with the BHB 175 breaker and the advanced Brokk SmartPower+ system, the Brokk 130+ maximizes efficiency for superior demolition performance. It delivers 20% more hitting force and 40% higher impact frequency, boosting production by 40–60%. Every movement is precisely controlled for smoother operation, greater force, and optimized productivity.

  • Increased uptime and power over time
  • Smart sensors and operator support system
  • Lightweight control box with tilted joysticks
  • 20,2 kW Brokk SmartPower+ electrical system
  • Compatible with 16 A and 32 A fuses for flexible power options

Features

Brokk QuickSwitch

Brokk QuickSwitch

Visual status communication system

Visual status communication system

Brokk SmartPower+

Brokk SmartPower+

Ergonomic control box

Ergonomic control box

Hydraulic breaker in illustrations.
Load and stability diagram available on request.
BHB 175

Performance

Slewing speed
10 sec/360°
Transport speed, max.
2.5 km/h; 1.6 mph
Climbing inclination, max.
30°

Hydraulic system

Hydraulic system capacity
40 l; 10.6 US gal
Pump type
Variable load-sensing
System pressure
18 MPa; 2611 psi
Pump flow 50Hz
56 l/min; 14.8 US gal/min
Pump flow 60Hz
66 l/min 17.4 US gal/min

Power system

Power technology
Brokk SmartPower+
Electric motor type
ABB
Power*
20.2 kW
Recommended fuse size*
32 A
Minimum fuse size (reduced power)*
16 A
Starting device
Soft start

Control system

Control type
Portable
Signal code
Digital
Transfer
Professional radio/Cable
Range, radio
Up to 300 m

Weight

Machine weight**
990 kg; 2183 lbs
Recommended attachment weight
180 kg; 397 lbs

Noise level

Sound power level LWA***
91 dB(A)

Width min.
780 mm; 30.7 in
Height min.
1160 mm; 45.7 in
Vertical reach (incl. breaker)
4300 mm; 169 in
Horizontal reach (incl. breaker)
3700 mm; 146 in

*Valid for 400 V/50 Hz and 440 V/60 Hz
**Excluding options and attachment
***Measured according to directive 2000/14/EC, excl. attachment

Extra cylinder protection

Extra cylinder protection

Suitable for hot environments, act as heat- and impact protection.

Download PDF
Rubber caterpillar tracks

Rubber caterpillar tracks

An allround solution with great grip.

Steel caterpillar tracks

Steel caterpillar tracks

Suitable when operating in hot or sharp material.

Download PDF
Heat resistant hoses

Heat resistant hoses

Suitable for red hot applications.

Download PDF
Forced draft cooling of machine

Forced draft cooling of machine

Suitable for high ambient temperatures. Flushes cool air into electrical cabinet and cooler.

Download PDF
Forced draft cooling for breaker

Forced draft cooling for breaker

Suitable for red hot applications and flushes air through the breaker.

Download PDF
Steel pads

Steel pads

Suitable when machine is placed on very hot ground.

Download PDF
Atomized Water Mist

Atomized Water Mist

A unique and integrated system that tackles the most hazardous silica dust particles.

Download PDF
Airflushing for breaker

Airflushing for breaker

Airflushing prevents dust from entering breaker, especially useful for upwards breaking and a must for underwater use.

Waterspray

Waterspray

Sprays water when breaker is activated and binds dust efficiently.

Download PDF
Extra hydraulic function

Extra hydraulic function

Required for certain tools only.

Download PDF
Counterweight

Counterweight

Allows the use of extra heavy tools.

Download PDF
Lifting eyes

Lifting eyes

Dedicated lifting eyes for easy connection. (Regular lifting points standard on all machines.)

Download PDF
Motion Warning

Motion Warning

Motion warning for traveling machine, with visual and audible indication.

Load Holding

Load Holding

The load holding option enables the stabilization of the robotic arm system over time, reducing the risk of arm sinking.

Download PDF

Breakers

Brokk’s hydraulic breakers are the most versatile and effective attachments for your Brokk robot.

Concrete crushers

A concrete crusher allows you to do silent demolition with less noise, dust and vibration.

Metal shears

Our wide range of metal shears allows you to cut steel of many different sizes.

Combi Shears

Brokk Combi Shears offer flexibility and are designed for cutting, sorting, and prizing all kinds of materials.

Drum cutters

Brokk drum cutters are designed for trenching, demolition and concrete surfaces

Drilling

Drill holes in rock, concrete, or compact soil in open or limited spaces.

Planers

Brokk planers remove concrete, paint, asbestos or other layers in a controlled manner up to a certain depth

Buckets

Turn your Brokk robot into a flexible excavator, optimal for confined spaces

Clamshell buckets

Brokk’s wide range of clamshell buckets transforms your Brokk robot into the perfect machine for sorting material and debris

Multi Purpose Grapples

Make your work even more efficient with a multi purpose grapple from Brokk, the ideal attachment for loading, sorting and separating debris

Sorting & demolition grapples

Sorting and demolition grapples are tailor-made and ideal for soft demolition and stripping structures inside of buildings

Cut off saw

Replace hand-held equipment with a Brokk cut off saw

Tap Hole Device

The chisel is equipped with flanges, specially designed for cleaning out tap holes in the metal processing industry.

Side angling device

Give your Brokk hydraulic breaker that extra angle for extremely confined spaces
