Like any Brokk robot, the Brokk Pedestal Boom offers great flexibility in underground and confined space applications

WANT OUR CATALOGUE? ORDER

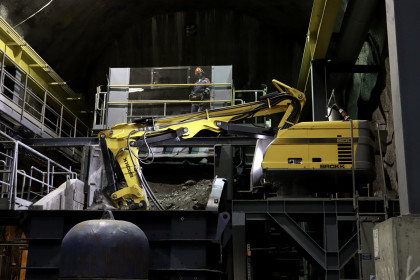

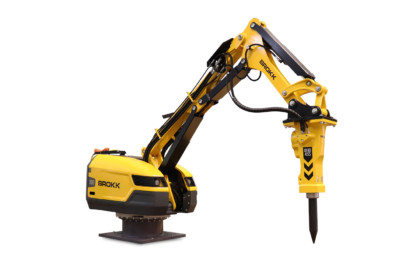

Like any Brokk robot, the Brokk 200 Pedestal Boom offers great flexibility in underground and confined space applications. With the machine body of a Brokk robot mounted on a pedestal it is adapted to suit primary breaking at mobile crushers, jaw crushers and grizzlies. The option of easy attachment changes and remote maneuvering with video and audio feedback makes it the ultimate plug-and-play solution for rock breaking at crushers and grizzlies.

  • Small footprint
  • 360 degrees slewing
  • Perfect for spaces with low headroom
  • Plug-and-play solution

Hydraulic breaker in illustrations.
Load and stability diagram available on request.
BHB 305

Slewing speed
10 sec/360°
Hydraulic system capacity
85 l; 22.5 US gal
Pump type
Variable load-sensing
System pressure
18 MPa; 2611 psi
Increased pressure to attachment
23 MPa; 3336 psi
Pump flow 50 Hz
85 l/min; 22.5 US gal/min
Pump flow 60 Hz
102 l/min; 27 US gal/min
Power*
27.5 kW
Recommended fuse size*
63 A
Machine weight**
1380 kg; 3042 lbs
Recommended attachment weight
350 kg; 772 lbs

*Valid for 400 V/50 Hz and 440 V/60 Hz
**Excluding options and attachment

Networked Remote Operation

Networked Remote Operation

Our Networked Remote Operation solution is optimized for stationary working robots and is perfectly suited for the Brokk Pedestal Boom.

Download PDF

Breakers

Brokk’s hydraulic breakers are the most versatile and effective attachments for your Brokk robot.

Drilling

Drill holes in rock, concrete, or compact soil in open or limited spaces.

Multi Purpose Grapples

Make your work even more efficient with a multi purpose grapple from Brokk, the ideal attachment for loading, sorting and separating debris

Buckets

Turn your Brokk robot into a flexible excavator, optimal for confined spaces
