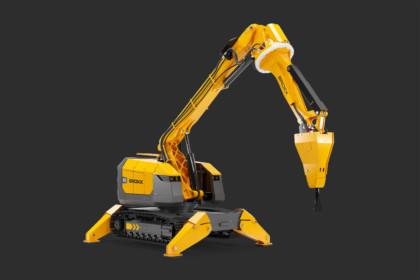

Brokk 900

Logoname
Made for heavy duty demolition and a robot to count on!

WANT OUR CATALOGUE? ORDER

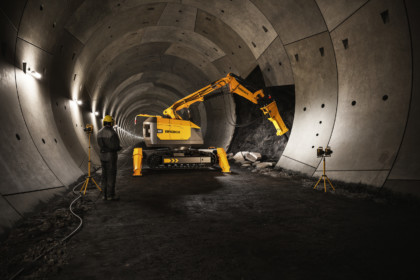

The Brokk 900 will open a whole new world of applications within heavy demolition and
the tunneling industry. Heavy jobs require heavy attachments, that’s the reason why Brokk 900 will be equipped with BHB 1500 which will give you more hitting power than any other demolition robot in the world. A major upgrade from its predecessor, Brokk 800, is that the Brokk 900 is equipped with SmartPower™ for optimized and more reliable runtime for longer periods of time. And with the new robust design, Brokk 900 will be a demolition robot to count on!





Read the press release here

  • Service friendly and robust design
  • Heavy breaker for heavy tasks
  • Reliable SmartPower™
  • Diesel or electric powered

Features

Brokk unique control system

Brokk unique control system

SmartPower™

SmartPower™

Longer and stronger track system

Longer and stronger track system

Daily maintenance - hoods on

Daily maintenance - hoods on

Hydraulic breaker in illustrations.
Load and stability diagram available on request.
BHB 1500

Performance

Slewing speed
16 sec/360°
Transport speed, max.
2.8 km/h; 1.7 mph
Climbing inclination, max.
30°

Hydraulic system

Hydraulic system capacity
230 l; 60.8 US gal
Pump type
Variable load-sensing
System pressure
18.5 MPa; 2683 psi
Increased pressure to attachment
25 MPa; 3626 psi
Pump flow Diesel/50Hz el. motor
148 l/min; 39 US gal/min
Pump flow 60Hz el. motor
178 l/min; 47 US gal/min

Electric motor

Electric motor type
ABB
Power*
71 kW
Recommended fuse size*
125 A
Starting device
Soft start

Diesel performance

Type 1
Kohler Four-cylinder, water-cooled, 4-stroke engine
Engine
55.5 kW; 74 hp diesel EPA Tier 4, EU Stage V
Engine oil volume
15.6 l; 4.1 US gal
Type 2
Kubota Four-cylinder, water-cooled, 4-stroke engine
Engine**
55.5 kW; 74 hp diesel EPA Tier 3, EU Stage IIIA
Engine oil volume
13.2 l; 3.5 US gal
Fuel tank capacity
80 l; 21 US gal
Freezing point
-40°C; -40°F

Control system

Control type
SmartRemote™, portable control
Signal code
Digital
Transfer
Professional radio/Cable
Range, radio
Up to 300 m

Weight

Machine weight***
11,400 kg; 25,133 lbs
Recommended attachment weight
1500 kg; 3307 lbs

Noise level

Sound power level LWA**** El:
99 dB(A)
Sound power level LWA**** Diesel:
103 dB(A)

Power
55.5 D, 71 E
Width min.
2150 mm; 84.6 in
Height min.
2545 mm; 100.2 in
Vertical reach (incl. breaker)
9100 mm; 358 in
Horizontal reach (incl. breaker)
8500 mm; 335 in

*Valid for 400 V/50 Hz and 440 V/60 Hz
**Rated power 74 kW: 99.2 hp at 2600 rpm (SAE J1995)
***Excluding options and attachment
****Measured according to directive 2000/14/EC, excl. attachment

Extra cylinder protection

Extra cylinder protection

Suitable for hot environments, act as heat- and impact protection.

Download PDF
Steel caterpillar tracks

Steel caterpillar tracks

Suitable when operating in hot or sharp material.

Download PDF
Airflushing for breaker

Airflushing for breaker

Airflushing prevents dust from entering breaker, especially useful for upwards breaking and a must for underwater use.

Extra hydraulic function

Extra hydraulic function

Required for certain tools only.

Download PDF
Lifting eyes

Lifting eyes

Dedicated lifting eyes for easy connection. (Regular lifting points standard on all machines.)

Download PDF
Forced draft cooling of machine

Forced draft cooling of machine

Suitable for high ambient temperatures. Flushes cool air into electrical cabinet and cooler.

Download PDF
Steel pads

Steel pads

Suitable when machine is placed on very hot ground.

Download PDF

Breakers

Brokk’s hydraulic breakers are the most versatile and effective attachments for your Brokk robot.

Concrete crushers

A concrete crusher allows you to do silent demolition with less noise, dust and vibration.

Metal shears

Our wide range of metal shears allows you to cut steel of many different sizes.

Buckets

Turn your Brokk robot into a flexible excavator, optimal for confined spaces

Clamshell buckets

Brokk’s wide range of clamshell buckets transforms your Brokk robot into the perfect machine for sorting material and debris

Multi Purpose Grapples

Make your work even more efficient with a multi purpose grapple from Brokk, the ideal attachment for loading, sorting and separating debris

Sorting & demolition grapples

Sorting and demolition grapples are tailor-made and ideal for soft demolition and stripping structures inside of buildings

Drilling

Drill holes in rock, concrete, or compact soil in open or limited spaces.

Drum cutters

Brokk drum cutters are designed for trenching, demolition and concrete surfaces

Beam Grapple

Equipped with a beam grapple, your Brokk robot becomes an excellent and flexible machine for installing steel beams in tunnel and mining applications

Shotcrete

This attachment can turn your Brokk robot into a shotcrete machine for confined spaces

Cut off saw

Replace hand-held equipment with a Brokk cut off saw
