Like any Brokk robot, the Brokk Pedestal Boom offers great flexibility in underground and confined space applications

WANT OUR CATALOGUE? ORDER

Adapted to suit primary breaking at jaw crushers and grizzlies, the Brokk 500 Pedestal Boom has the machine body of a Brokk robot mounted on a pedestal rather than tracks. This allows the machine to be installed in a stationary position close to the working area. The option of easy attachment changes and remote maneuvering with video and audio feedback makes it the ultimate plug-and-play solution for rock breaking at crushers and grizzlies.

  • Small footprint
  • 360 degrees slewing
  • Perfect for spaces with low headroom
  • Plug-and-play solution

Hydraulic breaker in illustrations.
Load and stability diagram available on request.
BHB 705

Slewing speed
16 sec/360°
Hydraulic system capacity
145 l; 38 US gal
Pump type
Variable load-sensing
System pressure
18 MPa; 2611 psi
Increased pressure to attachment
24 MPa; 3481 psi
Pump flow 50 Hz
115 l/min; 30 US gal/min
Pump flow 60 Hz
130 l/min; 34 US gal/min
Power*
41 kW
Recommended fuse size*
63 A
Machine weight**
3588 kg; 7910 lbs
Recommended attachment weight
700 kg; 1543 lbs

*Valid for 400 V/50 Hz and 440 V/60 Hz
**Excluding options and attachment

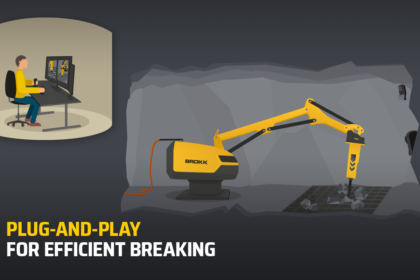

Networked Remote Operation

Networked Remote Operation

Our Networked Remote Operation solution is optimized for stationary working robots and is perfectly suited for the Brokk Pedestal Boom.
