The mean, green demolition machine. The most environmental-friendly diesel demolition robot on the planet.

WANT OUR CATALOGUE? ORDER

The Brokk 520D outperforms all other diesel-powered machines of its size. It is stronger, faster, and has longer reach, all while maintaining the same compact size as its predecessor, the Brokk 400D. The Brokk 520D is perfect for powerful demolition in places where there is not a reliable power supply and makes it the perfect machine for the most demanding tasks in all industries.

  • 7 metre reach
  • Diesel-powered
  • Reliable Brokk SmartPower™
  • Compatible with all Brokk 400 and Brokk 500 attachments

Features

Brokk unique control system

Brokk unique control system

Big size grease container

Big size grease container

SmartPower™

SmartPower™

Reinforced headlight protection

Reinforced headlight protection

Green diesel motor

Green diesel motor

Divided hose connection – outriggers

Divided hose connection – outriggers

Daily maintenance - hoods on

Daily maintenance - hoods on

Hydraulic breaker in illustrations.
Load and stability diagram available on request
BHB 705

Performance

Slewing speed
16 sec/360°
Transport speed, max.
2.5 km/h; 1.6 mph
Climbing inclination, max.
30°

Hydraulic system

Hydraulic system capacity
145 l; 38 US gal
Pump type
Variable load-sensing
System pressure
18 MPa; 2611 psi
Increased pressure to attachment
24 MPa; 3481 psi
Pump flow
130 l/min; 34 US gal/min

Diesel performance

Type 1)
Kohler Four-cylinder, water-cooled, 4-stroke engine
Engine
55 kW; 74 hp diesel EPA Tier 4, EU Stage IV
Engine oil volume
11.5 l; 3 US gal
Type 2)
Kubota Four-cylinder, water-cooled, 4-stroke engine
Engine***
55 kW; 74 hp diesel EPA Tier 3, EU Stage IIIA
Engine oil volume
13.2 l; 3.5 US gal
Fuel tank capacity
70 l; 18 US gal
Coolant volume
10 l; 2.6 gal
Freezing point
-40ºC; -40ºF

Control system

Control type
SmartRemote™, portable
Signal code
Digital
Transfer
Professional radio/Cable
Range, radio
Up to 300 m

Weight

Machine weight*
5500 kg; 12,125 lbs
Recommended attachment weight
700 kg; 1543 lbs

Noise level

Sound power level LWA**
101 dB(A)

Power
55 kW
Width min.
1600 mm; 63 in
Height min.
1680 mm; 66.1 in
Vertical reach (incl. breaker)
7300 mm; 280 in
Horizontal reach (incl. breaker)
6700 mm; 264 in

*Excluding options and attachment
**Measured according to directive 2000/14/EC, excl. attachment
***Rated power 74 kW: 99,2 hp at 2,600 rpm (SAE J1995)

Extra cylinder protection

Extra cylinder protection

Suitable for hot environments, act as heat- and impact protection.

Download PDF
Heavy duty dipper arm

Heavy duty dipper arm

With the breaker direct mounted and the cylinder underneath the dipper arm this option is perfect for heavy duty applications.

Heat resistant hoses

Heat resistant hoses

Suitable for red hot applications.

Download PDF
Forced draft cooling of machine

Forced draft cooling of machine

Suitable for high ambient temperatures. Flushes cool air into electrical cabinet and cooler.

Download PDF
Forced draft cooling for breaker

Forced draft cooling for breaker

Suitable for red hot applications and flushes air through the breaker.

Download PDF
Steel pads

Steel pads

Suitable when machine is placed on very hot ground.

Download PDF
Airflushing for breaker

Airflushing for breaker

Airflushing prevents dust from entering breaker, especially useful for upwards breaking and a must for underwater use.

Atomized Water Mist

Atomized Water Mist

A unique and integrated system that tackles the most hazardous silica dust particles.

Download PDF
Waterspray

Waterspray

Sprays water when breaker is activated and binds dust efficiently.

Download PDF
Extra hydraulic function

Extra hydraulic function

Required for certain tools only.

Download PDF
Counterweight

Counterweight

Allows the use of extra heavy tools.

Download PDF

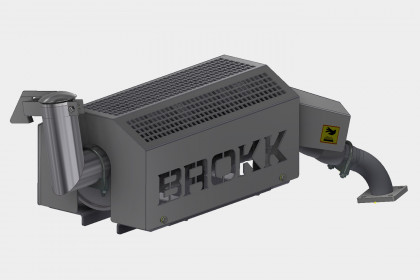

Particulate filter

Particulate filter

Reduces the emissions from the diesel engine.

Download PDF
Lifting eyes

Lifting eyes

Dedicated lifting eyes for easy connection. (Regular lifting points standard on all machines.)

Download PDF
Motion Warning

Motion Warning

Motion warning for traveling machine, with visual and audible indication.

Steel caterpillar tracks

Steel caterpillar tracks

Suitable when operating in hot or sharp material.

Download PDF
Rubber caterpillar tracks

Rubber caterpillar tracks

An allround solution with great grip.

Breakers

Brokk’s hydraulic breakers are the most versatile and effective attachments for your Brokk robot.

Concrete crushers

A concrete crusher allows you to do silent demolition with less noise, dust and vibration.

Metal shears

Our wide range of metal shears allows you to cut steel of many different sizes.

Buckets

Turn your Brokk robot into a flexible excavator, optimal for confined spaces

Clamshell buckets

Brokk’s wide range of clamshell buckets transforms your Brokk robot into the perfect machine for sorting material and debris

Multi Purpose Grapples

Make your work even more efficient with a multi purpose grapple from Brokk, the ideal attachment for loading, sorting and separating debris

Sorting & demolition grapples

Sorting and demolition grapples are tailor-made and ideal for soft demolition and stripping structures inside of buildings

Planers

Brokk planers remove concrete, paint, asbestos or other layers in a controlled manner up to a certain depth

Drilling

Drill holes in rock, concrete, or compact soil in open or limited spaces.

Drum cutters

Brokk drum cutters are designed for trenching, demolition and concrete surfaces

Beam Grapple

Equipped with a beam grapple, your Brokk robot becomes an excellent and flexible machine for installing steel beams in tunnel and mining applications

Shotcrete

This attachment can turn your Brokk robot into a shotcrete machine for confined spaces

Cut off saw

Replace hand-held equipment with a Brokk cut off saw

Splitters

Break hard rocks with a light, powerful and versatile Brokk splitter

Side angling device

Give your Brokk hydraulic breaker that extra angle for extremely confined spaces
