Brokk 500

Logoname
This demolition robot adds 40 percent of smart power to size up the effectiveness of your next project.

WANT OUR CATALOGUE? ORDER

The Brokk 500 demonstrates 40% more demolition power than its predecessor, the Brokk 400. With its new reinforced design and extended reach, it sets a new industry standard for power-to-size ratio in its segment. In addition, new technology allows for the use of heavier attachments such as the powerful BHB 705 breaker, despite its weight and size being nearly the same as the Brokk 400. When it comes to the Brokk 500, more really is more.

  • 40% more demolition power with the BHB 705 breaker
  • Extended working reach and radius
  • 41 kW Brokk SmartPower™ electrical system
  • Compatible with all Brokk 400 attachments

Features

Brokk unique control system

Brokk unique control system

Big size grease container

Big size grease container

SmartPower™

SmartPower™

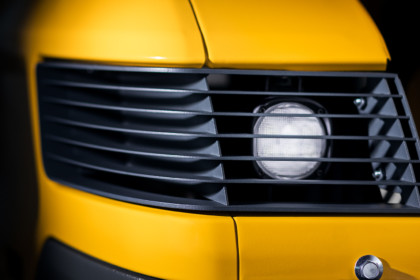

Reinforced headlight protection

Reinforced headlight protection

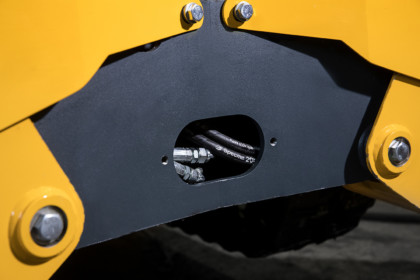

Divided hose connection – outriggers

Divided hose connection – outriggers

Daily maintenance - hoods on

Daily maintenance - hoods on

Hydraulic breaker in illustrations.
Load and stability diagram available on request.
BHB 705

Performance

Slewing speed
16 sec/360°
Transport speed, max.
1.8 km/h; 1.1 mph
Climbing inclination, max.
30°

Hydraulic system

Hydraulic system capacity
145 l; 38 US gal
Pump type
Variable load-sensing
System pressure
18 MPa; 2611 psi
Increased pressure to attachment
24 MPa; 3481 psi
Pump flow 50Hz
115 l/min; 30 US gal/min
Pump flow 60Hz
130 l/min; 34 US gal/min

Power system

Power technology
SmartPower™
Electric motor type
ABB
Power*
41 kW
Recommended fuse size*
63 A
Starting device
Soft start/Direct start

Control system

Control type
SmartRemote™, portable
Signal code
Digital
Transfer
Professional radio/Cable
Range, radio
Up to 300 m

Weight

Machine weight**
5200 kg; 11,464 lbs
Recommended attachment weight
700 kg; 1543 lbs

Noise level

Sound power level LWA***
100 dB(A)

Width min.
1600 mm; 63 in
Height min.
1677 mm; 66 in
Vertical reach (incl. breaker)
7300 mm; 287 in
Horizontal reach (incl. breaker)
7000 mm; 276 in

*Valid for 400V/50Hz and 440V/60Hz
**Excluding options and attachment
***Measured according to directive 2000/14/EC, excl. attachment

Extra cylinder protection

Extra cylinder protection

Suitable for hot environments, act as heat- and impact protection.

Download PDF
Heavy duty dipper arm

Heavy duty dipper arm

With the breaker direct mounted and the cylinder underneath the dipper arm this option is perfect for heavy duty applications.

Heat resistant hoses

Heat resistant hoses

Suitable for red hot applications.

Download PDF
Forced draft cooling of machine

Forced draft cooling of machine

Suitable for high ambient temperatures. Flushes cool air into electrical cabinet and cooler.

Download PDF
Forced draft cooling for breaker

Forced draft cooling for breaker

Suitable for red hot applications and flushes air through the breaker.

Download PDF
Steel pads

Steel pads

Suitable when machine is placed on very hot ground.

Download PDF
Airflushing for breaker

Airflushing for breaker

Airflushing prevents dust from entering breaker, especially useful for upwards breaking and a must for underwater use.

Waterspray

Waterspray

Sprays water when breaker is activated and binds dust efficiently.

Download PDF
Atomized Water Mist

Atomized Water Mist

A unique and integrated system that tackles the most hazardous silica dust particles.

Download PDF
Extra hydraulic function

Extra hydraulic function

Required for certain tools only.

Download PDF
Counterweight

Counterweight

Allows the use of extra heavy tools.

Download PDF
Cable reel

Cable reel

Spring loaded cable reel keeps track of the power cable.

Download PDF
Lifting eyes

Lifting eyes

Dedicated lifting eyes for easy connection. (Regular lifting points standard on all machines.)

Download PDF
Motion Warning

Motion Warning

Motion warning for traveling machine, with visual and audible indication.

Steel caterpillar tracks

Steel caterpillar tracks

Suitable when operating in hot or sharp material.

Download PDF
Rubber caterpillar tracks

Rubber caterpillar tracks

An allround solution with great grip.

Breakers

Brokk’s hydraulic breakers are the most versatile and effective attachments for your Brokk robot.

Concrete crushers

A concrete crusher allows you to do silent demolition with less noise, dust and vibration.

Metal shears

Our wide range of metal shears allows you to cut steel of many different sizes.

Buckets

Turn your Brokk robot into a flexible excavator, optimal for confined spaces

Clamshell buckets

Brokk’s wide range of clamshell buckets transforms your Brokk robot into the perfect machine for sorting material and debris

Multi Purpose Grapples

Make your work even more efficient with a multi purpose grapple from Brokk, the ideal attachment for loading, sorting and separating debris

Sorting & demolition grapples

Sorting and demolition grapples are tailor-made and ideal for soft demolition and stripping structures inside of buildings

Planers

Brokk planers remove concrete, paint, asbestos or other layers in a controlled manner up to a certain depth

Drilling

Drill holes in rock, concrete, or compact soil in open or limited spaces.

Drum cutters

Brokk drum cutters are designed for trenching, demolition and concrete surfaces

Beam Grapple

Equipped with a beam grapple, your Brokk robot becomes an excellent and flexible machine for installing steel beams in tunnel and mining applications

Shotcrete

This attachment can turn your Brokk robot into a shotcrete machine for confined spaces

Cut off saw

Replace hand-held equipment with a Brokk cut off saw

Splitters

Break hard rocks with a light, powerful and versatile Brokk splitter

Side angling device

Give your Brokk hydraulic breaker that extra angle for extremely confined spaces
