BROKK 300+

The new generation Brokk 300+ offers unparalleled strength, impressive reach, and unwavering reliability

WANT OUR CATALOGUE? ORDER

The Brokk 300+ represents a leap forward in both power and intelligence. Boasting remarkable hitting power and an enhanced capacity for driving heavy and powerful attachments, the new generation Brokk 300+ offers unparalleled strength, impressive reach, and unwavering reliability. Renowned for its exceptional power and performance, the Brokk 300+ truly is in a league of its own!

  • Increase in uptime and more power over time
  • Smart sensors and a sophisticated Brokk operator support system
  • Lightweight control box (less than 3kg) and tilted joysticks resulting in more comfortable and efficient work shifts
  • Impressive 6-meter reach
  • Driven by a robust 37 kW Brokk SmartPower+ electrical system
  • Capable of handling heavier and more powerful attachments

Features

Brokk QuickSwitch

Brokk QuickSwitch

Visual status communication system

Visual status communication system

Brokk SmartPower+

Brokk SmartPower+

Ergonomic control box

Ergonomic control box

Big size grease container

Big size grease container

Daily maintenance - hoods on

Daily maintenance - hoods on

Casted chassie parts

Casted chassie parts

Hydraulic breaker in illustrations.
Load and stability diagram available on request.
BHB 455

Performance

Slewing speed
16 sec/360°
Transport speed, max.
2.7 km/h; 1.7 mph
Climbing inclination, max.
30°

Hydraulic system

Hydraulic system capacity
95 l; 25 US gal
Pump type
Variable load-sensing
System pressure.
17 MPa; 2466 psi
Increased pressure to attachment
23 MPa; 3336 psi
Pump flow 50Hz
100 l/min; 26 US gal/min
Pump flow 60Hz
120 l/min; 32 US gal/min

Power system

Power technology
SmartPower+
Electric motor type
ABB
Power*
37 kW
Recommended fuse size*
63 A
Starting device
Soft start/Direct start

Control system

Control unit
Portable
Signal code
Digital
Transfer
Professional radio/Cable
Range, radio
Up to 300 m

Weight

Machine weight**
3650 kg; 8047 lbs
Recommended attachment weight
500 kg; 1102 lbs

Noise level

Sound power level LWA***
95 dB(A)

Width min.
1200 mm; 47.2 in
Height min.
1530 mm; 60.2 in
Vertical reach (incl. breaker)
6500 mm; 256 in
Horizontal reach (incl. breaker)
6100 mm; 240 in

*Valid for 400V/50Hz and 440V/60Hz
**Excluding options and attachment
***Measured according to directive 2000/14/EC, excl. attachment

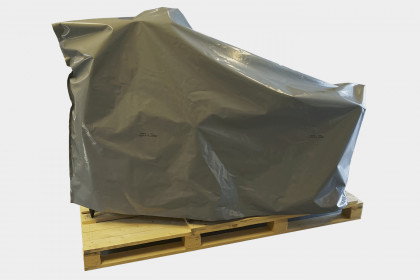

Brokk cover

Brokk cover

Protects the Brokk machine during transport or storage.

Breakers

Brokk’s hydraulic breakers are the most versatile and effective attachments for your Brokk robot.

Concrete crushers

A concrete crusher allows you to do silent demolition with less noise, dust and vibration.

Metal shears

Our wide range of metal shears allows you to cut steel of many different sizes.

Buckets

Turn your Brokk robot into a flexible excavator, optimal for confined spaces

Clamshell buckets

Brokk’s wide range of clamshell buckets transforms your Brokk robot into the perfect machine for sorting material and debris

Multi Purpose Grapples

Make your work even more efficient with a multi purpose grapple from Brokk, the ideal attachment for loading, sorting and separating debris

Sorting & demolition grapples

Sorting and demolition grapples are tailor-made and ideal for soft demolition and stripping structures inside of buildings

Planers

Brokk planers remove concrete, paint, asbestos or other layers in a controlled manner up to a certain depth

Drilling

Drill holes in rock, concrete, or compact soil in open or limited spaces.

Drum cutters

Brokk drum cutters are designed for trenching, demolition and concrete surfaces

Beam Grapple

Equipped with a beam grapple, your Brokk robot becomes an excellent and flexible machine for installing steel beams in tunnel and mining applications

Shotcrete

This attachment can turn your Brokk robot into a shotcrete machine for confined spaces

Cut off saw

Replace hand-held equipment with a Brokk cut off saw

Splitters

Break hard rocks with a light, powerful and versatile Brokk splitter

Side angling device

Give your Brokk hydraulic breaker that extra angle for extremely confined spaces

Tap Hole Device

The chisel is equipped with flanges, specially designed for cleaning out tap holes in the metal processing industry.
