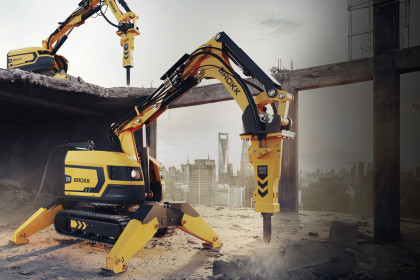

BROKK 70+

The Brokk 70+ emerges as the ultimate solution for secure and efficient demolition within tight quarters

WANT OUR CATALOGUE? ORDER

Enhanced with an integrated electro-hydraulic system, the newest generation Brokk 70+ boasts unparalleled power within its compact frame. The Brokk 70+ emerges as the ultimate solution for secure and efficient demolition within tight quarters, revolutionizing the landscape of confined space demolition.

  • Increase in uptime and more power over time
  • Smart sensors and a sophisticated Brokk operator support system
  • Ergonomically designed control box weighing less than 3kg and tilted joysticks
  • 9.8 kW Brokk SmartPower+ electrical system
  • Powered with only 16 A electricity fuse
  • Weighs less than 560 kg

Features

Brokk QuickSwitch

Brokk QuickSwitch

Visual status communication system

Visual status communication system

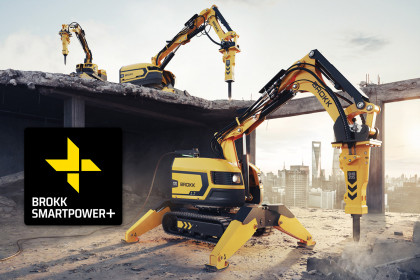

Brokk SmartPower+

Brokk SmartPower+

Ergonomic control box

Ergonomic control box

Three part arm system

Three part arm system

Daily maintenance - hoods on

Daily maintenance - hoods on

Hydraulic breaker in illustrations.
Load and stability diagram available on request.
BHB 105

Performance

Slewing speed
6,5 sec/245°
Transport speed, max.
2.7 km/h; 1.7 mph
Climbing inclination, max.
30°

Hydraulic system

Hydraulic system capacity
27 l; 7.1 US gal
Pump type
Variable load-sensing
System pressure
17 MPa; 2466 psi
Pump flow max. 50Hz and 60Hz
27 l/min; 7 US gal/min

Power system

Power technology
SmartPower+
Electric motor type
ABB
Power*
9.8 kW
Recommended fuse size*
16 A
Starting device
Direct start

Control system

Control unit
Portable
Signal code
Digital
Transfer
Professional radio/Cable
Range, radio
Up to 300 m

Weight

Machine weight**
560 kg; 1235 lbs
Recommended attachment weight
105 kg; 231 lbs

Noise level

Sound power level LWA***
90 dB(A)

Width min.
597 mm; 23.5 in
Height min.
880 mm; 34.6 in
Vertical reach (incl. breaker)
3200 mm; 126 in
Horizontal reach (incl. breaker)
2700 mm; 106 in

*Valid for 400 V/50 Hz and 440 V/60 Hz
**Excluding attachment and extra equipment
***Measured according to directive 2000/14/EC

Extra cylinder protection

Extra cylinder protection

Suitable for hot environments, act as heat- and impact protection.

Download PDF
Rubber caterpillar tracks

Rubber caterpillar tracks

An allround solution with great grip.

Forced draft cooling of machine

Forced draft cooling of machine

Suitable for high ambient temperatures. Flushes cool air into electrical cabinet and cooler.

Download PDF
Forced draft cooling for breaker

Forced draft cooling for breaker

Suitable for red hot applications and flushes air through the breaker.

Download PDF
Steel pads

Steel pads

Suitable when machine is placed on very hot ground.

Download PDF
Atomized Water Mist

Atomized Water Mist

A unique and integrated system that tackles the most hazardous silica dust particles.

Download PDF
Waterspray

Waterspray

Sprays water when breaker is activated and binds dust efficiently.

Download PDF
Extra hydraulic function

Extra hydraulic function

Required for certain tools only.

Download PDF
Lifting eyes

Lifting eyes

Dedicated lifting eyes for easy connection. (Regular lifting points standard on all machines.)

Download PDF
Motion Warning

Motion Warning

Motion warning for traveling machine, with visual and audible indication.

Breakers

Brokk’s hydraulic breakers are the most versatile and effective attachments for your Brokk robot.

Concrete crushers

A concrete crusher allows you to do silent demolition with less noise, dust and vibration.

Combi Shears

Brokk Combi Shears offer flexibility and are designed for cutting, sorting, and prizing all kinds of materials.

Drum cutters

Brokk drum cutters are designed for trenching, demolition and concrete surfaces

Buckets

Turn your Brokk robot into a flexible excavator, optimal for confined spaces

Clamshell buckets

Brokk’s wide range of clamshell buckets transforms your Brokk robot into the perfect machine for sorting material and debris

Multi Purpose Grapples

Make your work even more efficient with a multi purpose grapple from Brokk, the ideal attachment for loading, sorting and separating debris

Sorting & demolition grapples

Sorting and demolition grapples are tailor-made and ideal for soft demolition and stripping structures inside of buildings

Tap Hole Device

The chisel is equipped with flanges, specially designed for cleaning out tap holes in the metal processing industry.

Cut off saw

Replace hand-held equipment with a Brokk cut off saw
