BROKK 70

Great power in minimal spaces. A demolition robot that eliminates all need for manual demolition work.

WANT OUR CATALOG? ORDER

The Brokk 70 is the perfect solution for safe and efficient demolition in confined spaces. Compared to its predecessor, the Brokk 60, the Brokk 70 has a stunning 100% more demolition capacity. Its combination of power, small size, and light weight allow for work in places where mechanized demolition has previously been impossible. Equipped with SmartPower™ and a smooth hydraulic system, the Brokk 70 features enormous power in a miniature size. With the Brokk 70, there is no need to continue using harmful hand tools.

  • Weighs less than 560 kg
  • 9.8 kW Brokk SmartPower™ electrical system
  • Powered with only 16 A electricity fuse
  • Extremely compact - gets through the narrowest doorways

Features

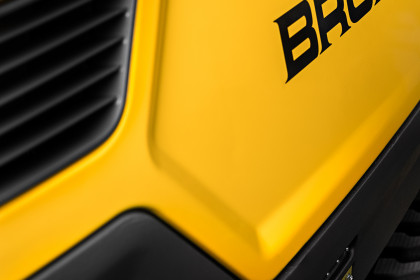

Casted chassie parts

Casted chassie parts

Daily maintenance - hoods on

Daily maintenance - hoods on

SmartPower™

SmartPower™

Three part arm system

Three part arm system

Hydraulic breaker in illustrations.
Load and stability diagram available on request.
BHB 105

Performance

Slewing speed
6,5 sec/245°
Transport speed, max.
2.7 km/h; 1.7 mph
Climbing inclination, max.
30°

Hydraulic system

Hydraulic system capacity
27 l; 7.1 US gal
Pump type
Variable load-sensing
System pressure
17 MPa; 2466 psi
Pump flow max. 50Hz and 60Hz
27 l/min; 7 US gal/min

Power system

Power technology
SmartPower™
Electric motor type
ABB
Power*
9.8 kW
Recommended fuse size*
16 A
Starting device
Direct start

Control system

Control type
SmartRemote™, portable
Signal code
Digital
Transfer
Professional radio/Cable
Range, radio
Up to 300 m

Weight

Machine weight**
560 kg; 1235 lbs
Recommended attachment weight
105 kg; 231 lbs

Noise level

Sound power level LWA***
90 dB(A)

Width min.
597 mm; 23.5 in
Height min.
880 mm; 34.6 in
Vertical reach (incl. breaker)
3200 mm; 126 in
Horizontal reach (incl. breaker)
2700 mm; 106 in

*Valid for 400 V/50 Hz and 440 V/60 Hz
**Excluding attachment and extra equipment
***Measured according to directive 2000/14/EC

Extra Cylinder Protection

Extra Cylinder Protection

Provides impact protection for C2 and C3 and works as a heat shield when working in red hot environments.

Download PDF
Rubber caterpillar tracks

Rubber caterpillar tracks

An allround solution with great grip.

Forced draft cooling of machine

Forced draft cooling of machine

Suitable for high ambient temperatures. Flushes cool air into electrical cabinet and cooler.

Download PDF
Forced draft cooling for breaker

Forced draft cooling for breaker

Suitable for red hot applications and flushes air through the breaker.

Download PDF
Steel pads

Steel pads

Suitable when machine is placed on very hot ground.

Download PDF
Waterspray

Waterspray

Sprays water when breaker is activated and binds dust efficiently.

Download PDF
Extra hydraulic function

Extra hydraulic function

Required for certain tools only.

Download PDF
Lifting eyes

Lifting eyes

Dedicated lifting eyes for easy connection. (Regular lifting points standard on all machines.)

Download PDF

Breakers

Brokk’s hydraulic breakers are the most versatile and effective attachments for your Brokk robot

Concrete crushers

A concrete crushers allows you to do silent demolition with less noise, dust and vibration

Drum cutters

Brokk drum cutters are designed for trenching, demolition, and concrete surfaces

Buckets

Turn your Brokk robot into a flexible excavator, optimal for confined spaces.

Clamshell buckets

Brokk’s wide range of clamshell buckets transforms your Brokk robot into the perfect machine for sorting material and debris.

Multi Purpose Grapples

Make your work even more efficient with a multi purpose grapple from Brokk, the ideal attachment for loading, sorting, and separating debris.

Sorting & demolition grapples

Sorting and demolition grapples are tailor-made and ideal for soft demolition and stripping structures inside of buildings.

Cut off saw

Replace hand-held equipment with a Brokk cut off saw.
