Brokk 900 Pedestal Boom

Like any Brokk robot, the Brokk Pedestal Boom offers great flexibility in underground and confined space applications

WANT OUR CATALOG? ORDER

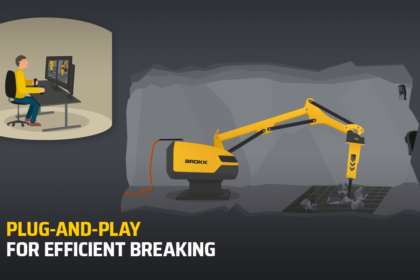

The advantages of a Brokk robot are many and in this modified solution the benefits become clear. The Brokk 900 Pedestal Boom allows you to apply the power and precision of Brokk’s demolition robots to primary breaking tasks that feed gyratory crushers and grizzlies. The option of easy attachment changes and remote maneuvering with video and audio feedback makes it the ultimate plug-and-play solution for rock breaking at gyratory crushers and grizzlies.

Small footprint
360 degrees slewing
Perfect for spaces with low headroom
Plug-and-play solution

Product sheet

Compare models

Read more about our edge

Hydraulic breaker in illustrations. Load and stability diagram available on request.: BHB 1500

Slewing speed: 16 sec/360°
Hydraulic system capacity: 230 l; 60.8 US gal
Pump type: Variable load-sensing
System pressure: 18.5 MPa; 2683 psi
Increased pressure to attachment: 25 MPa; 3626 psi
Pump flow 50 Hz: 148 l/min; 39 US gal/min
Pump flow 60 Hz: 178 l/min; 47 US gal/min
Power*: 71 kW
Recommended fuse size*: 125 A
Machine weight**: 7150 kg; 15,763 lbs
Recommended attachment weight: 1500 kg; 3307 lbs

*Valid for 400 V/50 Hz and 440 V/60 Hz
**Excluding options and attachment

Product sheet

Compare models

Networked Remote Operation

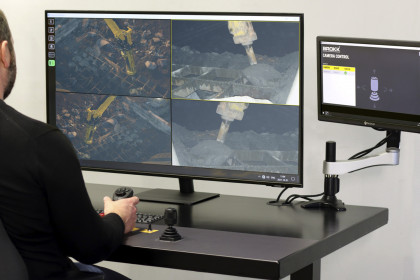

Our Networked Remote Operation solution is optimized for stationary working robots and is perfectly suited for the Brokk Pedestal Boom.

Compare models

Breakers

Brokk breakers are made for maximizing your efficiency. There are breakers for each model, optimizing the power of your specific Brokk machine. It hits harder and faster then other breakers on the market, still with less noise and vibrations.

Drilling Attachments

All-round attachment for drilling all types of holes in concrete, rock and compact soils. Blast holes at construction sites. Drilling in confined spaces, in all angles and directions.

Multi Purpose Grapples

Brokk offers a broad range of demolition grapples that help you do the job more effectively. Perfect attachment for loading, sorting and separating debris (rock, concrete, wood, metal work). Rotator allows for continuous rotation.

Buckets

With a bucket on your machine, your Brokk transforms to world’s most agile excavator, perfect for digging, loading, sorting & separation of material and debris.
