Upgrading the market leader with unbeatable power, new accessibility and smart, ergonomic design.

WANT OUR CATALOG? ORDER

If you liked the Brokk 160 you’ll love the Brokk 170. Taking the best from Brokk 160 and adding the full Brokk SmartConcept — the power of SmartPowerTM, the reliability of SmartDesignTM, the ergonomics and productivity of SmartRemoteTM — the Brokk 170 is the ultimate demolition machine for the construction industry. And, don’t let the size fool you. This new, lightweight machine gives you 15 percent more power, packs a mean wallop with the breaker and brutal force with the crusher. Still, it’s compact enough to get through standard door openings. A lean, mean demolition machine.

  • New benchmark in breaker and crusher performance
  • 24 kW Brokk SmartPowerTM electrical system
  • Brokk SmartDesignTM and SmartRemoteTM
  • Can operate on 32 A fuse (and of course 63 A)
  • Compatible with Brokk 160 attachments

Features

Brokk unique control system

Brokk unique control system

Big size grease container

Big size grease container

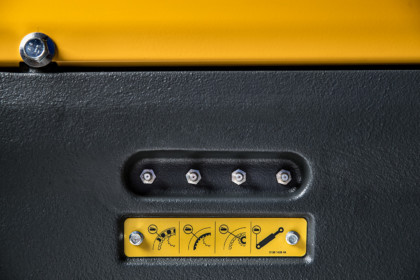

Daily maintenance - hoods on

Daily maintenance - hoods on

Hydraulic breaker in illustrations.
Load and stability diagram available on request.
BHB 205

Performance

Slewing speed
10 sec/360°
Transport speed, max.
2,1 km/h; 1.3 mph
Climbing inclination, max.
30°

Hydraulic system

Hydraulic system capacity
85 l; 22.5 US gal
Pump type
Variable load-sensing
System pressure
18 MPa; 2 611 psi
Increased pressure to attachment
25 MPa; 3 626 psi
Pump flow 50Hz
69 l/min; 18 US gal/min
Pump flow 60Hz
83 l/min; 21 US gal/min

Power system

Power technology
SmartPower
Electric motor type
ABB
Power*
24 kW
Recommended fuse size*
63 A
Starting device
Soft start/Direct start

Control system

Control type
SmartRemote, portable control
Signal code
Digital
Transfer
Professional radio/Cable
Range, radio
Up to 300 m

Weight

Machine weight**
1 600 kg; 3 527 lbs
Recommended attachment weight
270 kg; 595 lbs

Noise level

Sound power level LWA***
87 dB(A)

Width min.
780 mm; 30.7 in
Height min.
1254 in; 49.4 in
Vertical reach (incl. breaker)
4800 mm; 189 in
Horizontal reach (incl. breaker)
4400 mm; 173 in

*Valid for 400V/50Hz and och 440V/60Hz
**Excluding options and attachment
***Measured according to directive 2000/14/EC, excl. attachment

Extra Cylinder Protection

Extra Cylinder Protection

Provides impact protection for C2 and C3 and works as a heat shield when working in red hot environments.

Download PDF
Dozer blade

Dozer blade

Allows for dozing of material.

Download PDF
Heat resistant hoses

Heat resistant hoses

Suitable for red hot applications.

Download PDF
Forced draft cooling of machine

Forced draft cooling of machine

Suitable for high ambient temperatures. Flushes cool air into electrical cabinet and cooler.

Download PDF
Forced draft cooling for breaker

Forced draft cooling for breaker

Suitable for red hot applications and flushes air through the breaker.

Download PDF
Steel pads

Steel pads

Suitable when machine is placed on very hot ground.

Download PDF
Air flushing for breaker

Air flushing for breaker

Air flushing prevents dust from entering the breaker, especially useful for upwards breaking and a must for underwater use.

Waterspray

Waterspray

Sprays water when breaker is activated and binds dust efficiently.

Download PDF
Extra hydraulic function

Extra hydraulic function

Required for certain tools only.

Download PDF
Lifting eyes

Lifting eyes

Dedicated lifting eyes for easy connection. (Regular lifting points standard on all machines.)

Download PDF
Brokk cover

Brokk cover

Protects the Brokk machine during transport or storage.

Breakers

Brokk’s hydraulic breakers are the most versatile and effective attachments for your Brokk robot

Concrete crushers

A concrete crushers allows you to do silent demolition with less noise, dust and vibration

Metal shears

Our wide range of metal shears allows you to cut steel of many different sizes

Buckets

Turn your Brokk robot into a flexible excavator, optimal for confined spaces.

Clamshell buckets

Brokk’s wide range of clamshell buckets transforms your Brokk robot into the perfect machine for sorting material and debris.

Multi Purpose Grapples

Make your work even more efficient with a multi purpose grapple from Brokk, the ideal attachment for loading, sorting, and separating debris.

Sorting & demolition grapples

Sorting and demolition grapples are tailor-made and ideal for soft demolition and stripping structures inside of buildings.

Planers

Brokk planers remove concrete, paint, asbestos, or other layers in a controlled manner up to a certain depth

Drilling

Drill holes in rock, concrete, or compact soil in open or limited spaces

Drum cutters

Brokk drum cutters are designed for trenching, demolition, and concrete surfaces

Cut off saw

Replace hand-held equipment with a Brokk cut off saw.

Side angling device

Give your Brokk hydraulic breaker that extra angle for extremely confined spaces.
