Brokk 520D

Logoname
The mean, green demolition machine. For the most environmental-friendly diesel demolition on the planet.

WANT OUR CATALOG? ORDER

The Brokk 520D is a beast. With 40 percent more hitting power and the ability to size up attachments, this diesel-powered machine outperforms everything its size. It’s stronger, faster and has a longer reach — while keeping key compact dimensions of its predecessor, the Brokk 400D. Adding the Brokk SmartConcept — the reliability of SmartPower™, the clever features of SmartDesign™, the ergonomics and productivity of SmartRemote™ — this machine is optimal for the heaviest of tasks in any industry. Meeting new emission standards (EPA Tier 4 Final/EU Stage IV) it is also the greenest diesel demolition robot on the planet.

  • 40 percent more demolition power with the BHB 705
  • Meets the toughest emission standards
  • Rugged and reliable Brokk SmartPowerTM
  • Brokk SmartDesignTM and SmartRemoteTM
  • Compatible with all Brokk 400 and Brokk 500 attachments

Features

SmartPower™

SmartPower™

The world’s most intelligent power system, designed specifically for heavy duty demolition.

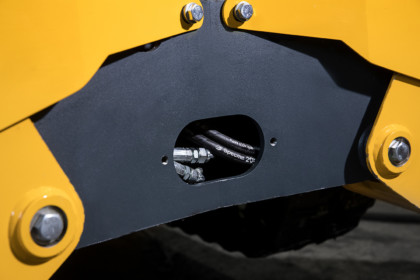

Divided hose connection – outriggers

Divided hose connection – outriggers

Outrigger hoses are divided so only a short section needs replacement if damaged by rebar or other debris.
Daily maintenance - hoods on

Daily maintenance - hoods on

All daily and weekly maintenance can be carried out without lifting a machine cover, even on the jobsite.

Hydraulic breaker in illustrations.
Load and stability diagram available on request
BHB 705

Performance

Slewing speed
16 sec/360°
Transport speed, max.
3,4 km/h; 2.1 mph
Climbing inclination, max.
30°

Hydraulic system

Hydraulic system capacity
145 l; 38 US gal
Pump type
Variable load-sensing
System pressure
18,0 MPa; 2 611 psi
Increased pressure to attachment
24,0 MPa; 3 481 psi
Pump flow
130 l/min; 34 US gal/min

Diesel performance

Type 1)
Kohler Four-cylinder, water-cooled, 4-stroke engine
Engine
55 kW; 74 hp diesel EPA Tier 4, EU Stage IV
Engine oil volume
11,5 l; 3 US gal
Type 2)
Kubota Four-cylinder, water-cooled, 4-stroke engine
Engine***
55 kW; 74 hp diesel EPA Tier 3, EU Stage IIIA
Engine oil volume
13,2 l; 3.5 US gal
Fuel tank capacity
70 l; 18 US gal
Coolant volume
10 l; 2.6 gal
Freezing point
-40ºC; -40ºF

Control system

Control type
SmartRemote, portable control
Signal code
Digital
Transfer
Professional radio/Cable
Range, radio
Up to 300 m

Weight

Machine weight*
5 500 kg; 12 125 lbs
Recommended attachment weight
700 kg; 1 543 lbs

Noise level

Sound power level LWA**
101 dB(A)

Power
55 D
Width min.
1600 mm; 63 in
Height min.
1860 mm; 73.2 in
Vertical reach (incl. breaker)
7100 mm; 280 in
Horizontal reach (incl. breaker)
6700 mm; 264 in

*Excluding options and attachment
**Measured according to directive 2000/14/EC, excl. attachment
***Rated power 74 kW: 99,2 hp at 2,600 rpm (SAE J1995)

Cylinder protection for cy 2 and cy 3

Cylinder protection for cy 2 and cy 3

Suitable for hot environments, act as heat- and impact protection.

Download PDF
Heavy duty boom

Heavy duty boom

Suitable for tough breaker applications with cy 4 ­protected under boom.

Heat resistant hoses

Heat resistant hoses

Suitable for red hot applications.

Download PDF
Forced draft cooling of machine

Forced draft cooling of machine

Suitable for high ambient temperatures. Flushes cool air into electrical cabinet and cooler.

Download PDF
Forced draft cooling for breaker

Forced draft cooling for breaker

Suitable for red hot applications and flushes air through the breaker.

Download PDF
Steel pads

Steel pads

Suitable when machine is placed on very hot ground.

Download PDF
Airflushing through breaker

Airflushing through breaker

Prevents dust from entering breaker, suitable for upwards breaking and underwater breaking.

Waterspray

Waterspray

Sprays water when breaker is activated and binds dust efficiently.

Download PDF
Extra hydraulic function

Extra hydraulic function

Required for certain tools only.

Download PDF
Counterweight

Counterweight

Allows the use of extra heavy tools.

Download PDF
Particulate filter

Particulate filter

Reduces the emissions from the diesel engine.

Download PDF
Lifting eyes

Lifting eyes

Dedicated lifting eyes for easy connection. (Regular lifting points standard on all machines.)

Download PDF
Brokk cover

Brokk cover

Protects the Brokk machine during transport or storage.

Breakers

Brokk breakers are made for maximizing your efficiency. There are breakers for each model, optimizing the power of your specific Brokk machine. It hits harder and faster then other breakers on the market, still with less noise and vibrations.

Concrete crushers

Our crushers are just as scaringly effective as they look. Provides free rotation and has exchangeable tips. The larger crushers also has additional teeth and pulverizing pads.

Metal Shears

The sane and easy way to cut pipes, bars, girders, profiles, structures, etc. Different jaw sets, and replaceable cutting and breaking tips available for some models. Rotator with continuous rotation.

Buckets

With a bucket on your machine, your Brokk transforms to world’s most agile excavator, perfect for digging, loading, sorting & separation of material and debris.

Clamshell buckets

A variety of clamshell buckets transforms the Brokk to the perfect machine for loading, sorting & separation and transporting material and debris.

Multi Purpose Grapples

Brokk offers a broad range of demolition grapples that help you do the job more effectively. Perfect attachment for loading, sorting and separating debris (rock, concrete, wood, metal work). Rotator allows for continuous rotation.

Sorting & demolition grapples

These dedicated grapples are tailor-made tool for loading, sorting and separating debris (rock, concrete, wood, metal work). Rotator with continuous rotation.

Planers

Brokk planers remove concrete, paint, asbestos or other layers in a controlled manner up to a certain depth and can be equipped with a suction hose.

Drilling Attachments

All-round attachment for drilling all types of holes in concrete, rock and compact soils. Blast holes at construction sites. Drilling in confined spaces, in all angles and directions.

Drum Cutters

The Brokk drum cutters is ideal for tunneling, special foundation work, demolition, trenching and soil mixing. Suited for noise and vibration sensitive areas. They come complete with mounting kit and valves for flow-control and motor protection.

Beam Grapple

Equipped with a beam grapple, the Brokk robot becomes an excellent and flexible machine for installing steel beams in tunneling and mining.

Shotcrete

By connecting a high pressure pump machinery to this tool you are able do a variety of shotcrete work with your remote-controlled machine. Gunning and air pressure depends on concrete pump.

Cut Off Saw

Replace hand-held equipment with a Brokk cut off saw. Saw blades for many different materials are available.

Splitters

A light, powerful and versatile splitter with built-in booster for maximum power in a very slim design. Rotable with adjustable splitting direction. Different mounting options. Automatic lubrication.

Side Angling Device

The side angling device gives the Brokk breaker that extra working angle for extremely confined spaces.
