BROKK 70+
The Brokk 70+ emerges as the ultimate solution for secure and efficient demolition within tight quarters
WANT OUR CATALOG? ORDER
Enhanced with an integrated electro-hydraulic system, the newest generation Brokk 70+ boasts unparalleled power within its compact frame. The Brokk 70+ emerges as the ultimate solution for secure and efficient demolition within tight quarters, revolutionizing the landscape of confined space demolition.
- Increase in uptime and more power over time
- Smart sensors and a sophisticated Brokk operator support system
- Ergonomically designed control box weighing less than 7lb and tilted joysticks
- 9.8 kW Brokk SmartPower+ electrical system
- Powered with only 16 A electricity fuse
- Weighs less than 1235 lbs
Features
Ergonomic control box
Brokk SmartPower+
Ergonomic control box
Visual status communication system
Three part arm system
Allows for extraordinary reach and power in all directions, providing maximum precision and accuracy.
Daily maintenance - hoods on
- Hydraulic breaker in illustrations.
Load and stability diagram available on request. - BHB 105
Performance
- Slewing speed
- 6,5 sec/245°
- Transport speed, max.
- 2.7 km/h; 1.7 mph
- Climbing inclination, max.
- 30°
Hydraulic system
- Hydraulic system capacity
- 27 l; 7.1 US gal
- Pump type
- Variable load-sensing
- System pressure
- 17 MPa; 2466 psi
- Pump flow max. 50Hz and 60Hz
- 27 l/min; 7 US gal/min
Power system
- Power technology
- SmartPower+
- Electric motor type
- ABB
- Power*
- 9.8 kW
- Recommended fuse size*
- 16 A
- Starting device
- Direct start
Control system
- Control unit
- Portable
- Signal code
- Digital
- Transfer
- Professional radio/Cable
- Range, radio
- Up to 300 m
Weight
- Machine weight**
- 560 kg; 1235 lbs
- Recommended attachment weight
- 105 kg; 231 lbs
Noise level
- Sound power level LWA***
- 90 dB(A)
- Width min.
- 597 mm; 23.5 in
- Height min.
- 880 mm; 34.6 in
- Vertical reach (incl. breaker)
- 3200 mm; 126 in
- Horizontal reach (incl. breaker)
- 2700 mm; 106 in
*Valid for 400 V/50 Hz and 440 V/60 Hz
**Excluding attachment and extra equipment
***Measured according to directive 2000/14/EC
Brokk 70+: Related info

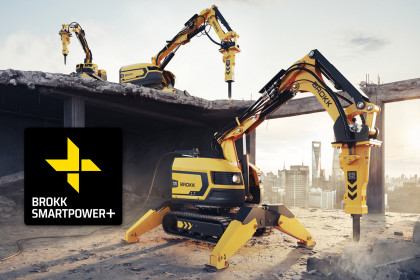

Brokk SmartPower+
https://youtu.be/8sXoZ127qWc?si=Ed8szkLVLDW0x0cN Power and brains – just unstoppable! Brokk launches Brokk SmartPower+, its latest industry-leading generation of robots. Discover a groundbreaking shift in demolition robots with Brokk…
Brokk Revolutionizes Demolition Technology with SmartPower+ Generation
Brokk Revolutionizes Demolition Technology with SmartPower+ Generation Las Vegas (January 23, 2024) — Brokk, the global leader in remote-controlled demolition robots, announces the launch of Brokk SmartPower+, a…

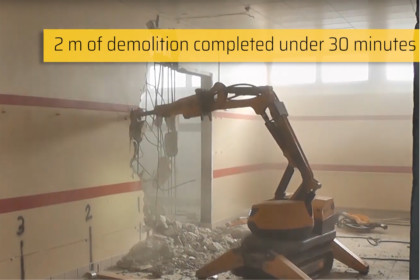

Brokk 70 takes demolition to the next level
