My Brokk

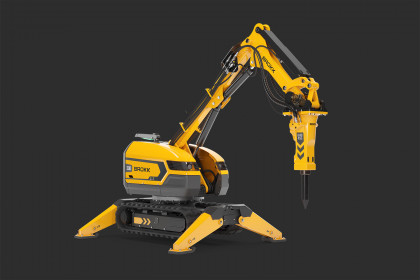

BROKK 200+

The newest generation Brokk 200+ defies its size by accommodating heavier tools to outperform any competition
Products overview

WANT OUR CATALOG? ORDER

With added smart sensors and a sophisticated operator support system relaying updates in real-time, the Brokk 200+ provides added intelligence and unmatched power-to-size ratio. The newest generation Brokk 200+ defies its size by accommodating heavy attachments, outperforming any competition.

  • Increase in uptime and more power over time
  • Smart sensors and a sophisticated Brokk operator support system
  • Ergonomically designed control box weighing less than 7lbs and tilted joysticks
  • Unleashes impressive demolition power
  • Remarkably small footprint given its power and reach
  • Employs a 27.5 kW Brokk SmartPower+ electrical system
  • Specifically engineered and optimized for heavy, high-performance attachments

Features

Brokk QuickSwitch

Brokk QuickSwitch

Visual status communication system

Visual status communication system

Big size grease container

Big size grease container

Brokk SmartPower+

Brokk SmartPower+

Ergonomic control box

Ergonomic control box

Daily maintenance - hoods on

Daily maintenance - hoods on

Product sheet
Compare models
Read more about our edge

Hydraulic breaker in illustrations.
Load and stability diagram available on request.
BHB 305

Performance

Slewing speed
10 sec/360°
Transport speed, max.
2.1 km/h; 1.3 mph
Climbing inclination, max.
30°

Hydraulic system

Hydraulic system capacity
85 l; 22.5 US gal
Pump type
Variable load-sensing
System pressure
18 MPa; 2611 psi
System pressure, increased to attachment, max.
23 MPa; 3336 psi
Pump flow 50Hz
85 l/min; 22.5 US gal/min
Pump flow 60Hz
102 l/min; 27 US gal/min

Power system

Power technology
SmartPower+
Electric motor type
ABB
Power*
27.5 kW
Recommended fuse size*
63 A
Starting device
Soft start/Direct start

Control system

Control unit
Portable
Signal code
Digital
Transfer
Professional radio/Cable
Range, radio
Up to 300 m

Weight

Machine weight**
2100 kg; 4630 lbs
Recommended max. attachment weight
350 kg; 772 lbs

Noise level

Sound power level LWA***
87 dB(A)

Width min.
780 mm; 30.7 in
Height min.
1351 mm; 53.2 in
Vertical reach (incl. breaker)
5450 mm; 215 in
Horizontal reach (incl. breaker)
5100 mm; 201 in

*Valid for 400V/50Hz and 440V/60Hz
**Excluding options and attachment
***Measured according to directive 2000/14/EC, excl. attachment

Compare models
Read more about our edge
Cylinder protection for cy 2 and cy 3

Cylinder protection for cy 2 and cy 3

Suitable for hot environments, act as heat- and impact protection.

Download PDF
Rubber caterpillar tracks

Rubber caterpillar tracks

An all around solution with great grip.

Steel caterpillar tracks

Steel caterpillar tracks

Suitable when operating in hot or sharp material.

Download PDF
Heat resistant hoses

Heat resistant hoses

Suitable for red hot applications.

Download PDF
Forced draft cooling for breaker

Forced draft cooling for breaker

Suitable for red hot applications and flushes air through the breaker.

Download PDF
Forced draft cooling of machine

Forced draft cooling of machine

Suitable for high ambient temperatures. Flushes cool air into electrical cabinet and cooler.

Download PDF
Steel pads

Steel pads

Suitable when machine is placed on very hot ground.

Download PDF
Airflushing through breaker

Airflushing through breaker

Prevents dust from entering breaker, suitable for upwards breaking and underwater breaking.

Waterspray

Waterspray

Sprays water when breaker is activated and binds dust efficiently.

Download PDF
Extra hydraulic function

Extra hydraulic function

Required for certain tools only.

Download PDF
Counterweight

Counterweight

Allows the use of extra heavy tools.

Download PDF
Lifting eyes

Lifting eyes

Dedicated lifting eyes for easy connection. (Regular lifting points standard on all machines.)

Download PDF
Compare models
Read more about our options
Breakers

Breakers

Brokk breakers are made for maximizing your efficiency. There are breakers for each model, optimizing the power of your specific Brokk machine. It hits harder and faster then other breakers on the market, still with less noise and vibrations.

Read more
Concrete crushers

Concrete crushers

Our crushers are just as scaringly effective as they look. Provides free rotation and has exchangeable tips. The larger crusher also has additional teeth and pulverizing pads.

Read more
Metal Shears

Metal Shears

Our wide range of metal shears allow you to cut steel of varying thickness, making it perfect for recycling applications.

Read more
Buckets

Buckets

With a bucket on your machine, your Brokk transforms to world’s most agile excavator, perfect for digging, loading, sorting and separation of material and debris.

Read more
Clamshell buckets

Clamshell buckets

A variety of clamshell buckets transforms the Brokk to the perfect machine for loading, sorting & separation and transporting material and debris.

Read more
Multi Purpose Grapples

Multi Purpose Grapples

A multi-purpose grapple drives efficiency gains for loading, sorting and separating debris, including rock, concrete, wood and metal.

Read more
Sorting & Demolition Grapples

Sorting & Demolition Grapples

Brokk’s sorting and demolition grapples are tailor-made. They are ideal for soft demolition and stripping structures inside buildings, whether you are prepping for demolition or handling scrap.

Read more
Planers

Planers

Our planers remove concrete, paint, asbestos and other material in a controlled manner.

Read more
Drilling Equipment

Drilling Equipment

A Brokk robot can become a small drilling rig with a drilling attachment. It allows you to drill holes in concrete, rock and compact soils.

Read more
Drum Cutters

Drum Cutters

When demolishing soft or porous materials, a drum cutter is ideal. It’s designed for tunneling, demolition, trenching and concrete surfaces.

Read more
Shotcrete

Shotcrete

This attachment can turn your Brokk robot into a shotcrete machine for confined spaces. It’s ideal for use in tunnels and mines.

Read more
Cut Off Saw

Cut Off Saw

Replace hand-held equipment with a Brokk cut off saw. Saw blades for many different materials are available.

Read more
Side Angling Device

Side Angling Device

Give your Brokk robot’s hydraulic break an extra angle for the most confined spaces.

Read more
Compare models
Read more about our attachments
