BROKK 300+
The new generation Brokk 300+ offers unparalleled strength, impressive reach, and unwavering reliability
WANT OUR CATALOG? ORDER
The Brokk 300+ represents a leap forward in both power and intelligence. Boasting remarkable hitting power and an enhanced capacity for driving heavy and powerful attachments, the new generation Brokk 300+ offers unparalleled strength, impressive reach, and unwavering reliability. Renowned for its exceptional power and performance, the Brokk 300+ truly is in a league of its own!
- Increase in uptime and more power over time
- Smart sensors and a sophisticated Brokk operator support system
- Lightweight control box (less than 7lbs) and tilted joysticks resulting in more comfortable and efficient work shifts
- Impressive 19.685-feet reach
- Driven by a robust 37 kW Brokk SmartPower+ electrical system
- Capable of handling heavier and more powerful attachments
Features

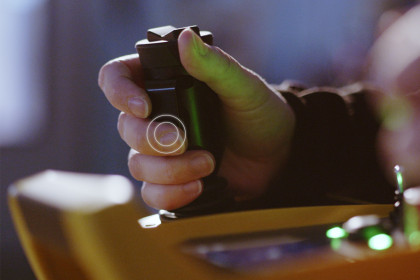

Brokk QuickSwitch

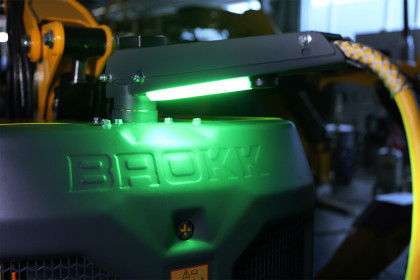

Visual status communication system

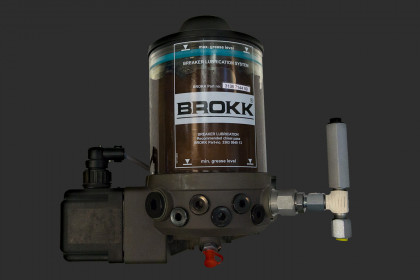

Big size grease container

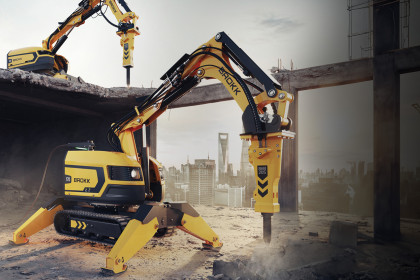

Brokk SmartPower+

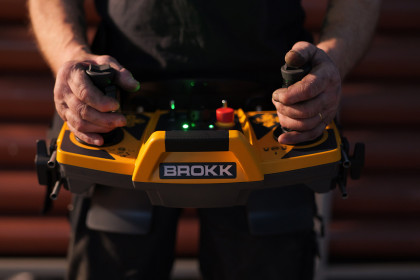

Ergonomic control box
Daily maintenance - hoods on
Casted chassie parts
Casted turn-table corners protect critical components from damage.
- Hydraulic breaker in illustrations.
Load and stability diagram available on request. - BHB 455
Performance
- Slewing speed
- 16 sec/360°
- Transport speed, max.
- 2.7 km/h; 1.7 mph
- Climbing inclination, max.
- 30°
Hydraulic system
- Hydraulic system capacity
- 95 l; 25 US gal
- Pump type
- Variable load-sensing
- System pressure.
- 17 MPa; 2466 psi
- Increased pressure to attachment
- 23 MPa; 3336 psi
- Pump flow 50Hz
- 100 l/min; 26 US gal/min
- Pump flow 60Hz
- 120 l/min; 32 US gal/min
Power system
- Power technology
- SmartPower+
- Electric motor type
- ABB
- Power*
- 37 kW
- Recommended fuse size*
- 63 A
- Starting device
- Soft start/Direct start
Control system
- Control unit
- Portable
- Signal code
- Digital
- Transfer
- Professional radio/Cable
- Range, radio
- Up to 300 m
Weight
- Machine weight**
- 3650 kg; 8047 lbs
- Recommended attachment weight
- 500 kg; 1102 lbs
Noise level
- Sound power level LWA***
- 95 dB(A)
- Width min.
- 1200 mm; 47.2 in
- Height min.
- 1530 mm; 60.2 in
- Vertical reach (incl. breaker)
- 6500 mm; 256 in
- Horizontal reach (incl. breaker)
- 6100 mm; 240 in
*Valid for 400V/50Hz and 440V/60Hz
**Excluding options and attachment
***Measured according to directive 2000/14/EC, excl. attachment
